Description:The ISL8560 is a step down DC/DC power switching regulator which accepts 9.0V to 60V input and provides a 2A output current. The output voltage can be set in the range between 1.21V and 55V by means of an external divider. The device uses an internal power DMOS transistor with a typical rDS(ON) of 0.19Ω to obtain very high efficiency and high switching speed. A switching frequency in the range of 100kHz to 600kHz can be realized (the maximum power dissipation of the various packages must be observed). Notab
Renesas provides a recommended PCB layout in the ISL8560IRZ-T evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific requirements of your application, such as ripple current, voltage rating, and ESR. Renesas recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and following the guidelines in the datasheet for capacitor selection.
The ISL8560IRZ-T is rated for operation from -40°C to +125°C, but the maximum ambient temperature range for reliable operation depends on the specific application and thermal management. Renesas recommends following the thermal design guidelines in the datasheet and ensuring that the junction temperature remains below 150°C.
The ISL8560IRZ-T has built-in overcurrent protection and short-circuit protection features. To implement these features, follow the guidelines in the datasheet for setting the overcurrent threshold and short-circuit detection time, and ensure that the output is properly connected to the sense pins.
The recommended startup sequence for the ISL8560IRZ-T is to first apply the input voltage, then enable the device by pulling the EN pin high, and finally apply the output load. This sequence helps to ensure proper startup and minimize the risk of damage or malfunction.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8560IRZ-T Overview

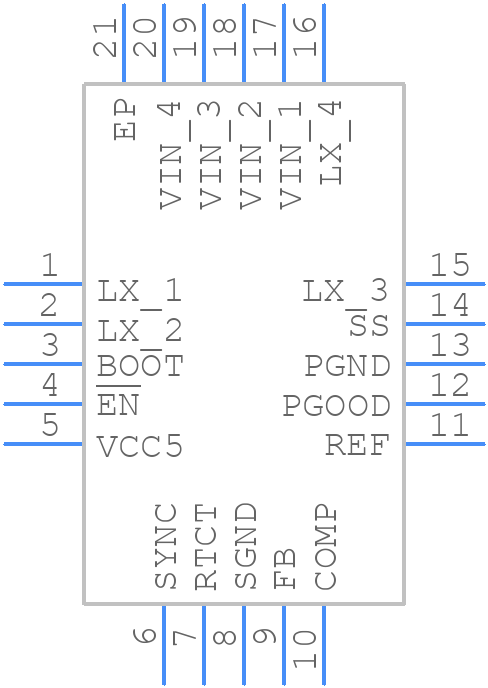

Use the download button to access the ISL8560IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL85,
or try a keyword search, such as Switching Regulator or Controllers
