ISL8702IBZ - Renesas Electronics

Description: The ISL8700, ISL8701, ISL8702 family of ICs provide four delay adjustable sequenced outputs while monitoring an input voltage all with a minimum of external components. High performance DSP, FPGA, µP and various subsystems require input power sequencing for proper functionality at initial power-up and the ISL870X provides this function while monitoring the distributed voltage for over and undervoltage compliance. The ISL8700 and ISL8701 operate over the +2. 5V to +24V nominal voltage range, whereas the ISL8

Download ISL8702IBZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

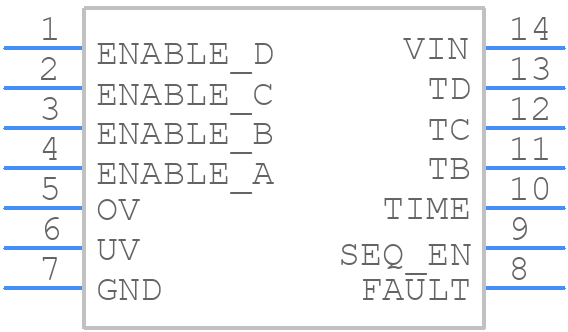

ISL8702IBZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL8702IBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M14.15_
click to zoom
3D Models
ISL8702IBZ - Renesas Electronics - 3D model - Small Outline Packages - M14.15_
click to zoom

ISL8702IBZ Details

  • Manufacturer Part Number:

    ISL8702IBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    M14.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-24

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Boundary Scan:

    NO

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Max:

    12 V

  • Supply Voltage-Min:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, ADDRESS SEQUENCER

ISL8702IBZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL8702IBZ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
  • To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF with an ESR of 1ohm or less is recommended. Additionally, the output capacitor should be placed close to the IC to minimize the loop area and reduce noise.
  • The ISL8702IBZ can handle a maximum input voltage of 18V. However, it's recommended to operate the device within the recommended input voltage range of 6.5V to 16V for optimal performance and reliability.
  • The ISL8702IBZ has a resistor-programmable output voltage. To program the output voltage, you need to connect two resistors (R1 and R2) between the VOUT pin and the GND pin. The output voltage can be calculated using the formula: VOUT = 0.8V * (1 + R2/R1).
  • The ISL8702IBZ can deliver a maximum output current of 2A. However, the output current should be derated based on the input voltage and ambient temperature to ensure reliable operation.
