ISL8840AABZ - Renesas Electronics

Description: The ISL884xA is a high performance drop-in replacement for the popular 28C4x and 18C4x PWM controllers suitable for a wide range of power conversion applications including boost, flyback, and isolated output configurations. Its fast signal propagation and output switching characteristics make this an ideal product for existing and new designs. Features include 30V operation, low operating current, 90µA start-up current, adjustable operating frequency to 2MHz, and high peak current drive capability with 20ns

Download ISL8840AABZ Model

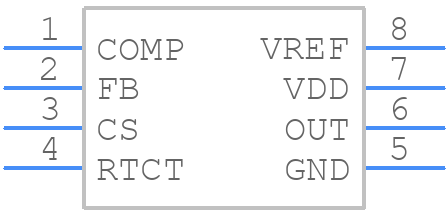

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL8840AABZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
ISL8840AABZ - Renesas Electronics  - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

ISL8840AABZ Details

  • Manufacturer Part Number:

    ISL8840AABZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL8840AABZ Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the ISL8840AABZ is 24V, but it's recommended to operate within the specified input voltage range of 6.5V to 18V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor with low ESR, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor between the VOUT and GND pins.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power standby modes in the system.
  • The output current capability of the ISL8840AABZ depends on the input voltage, output voltage, and ambient temperature. The maximum output current can be calculated using the equation: IOUT_MAX = (VIN - VOUT) / (RDS(ON) * 2), where RDS(ON) is the on-resistance of the internal FET. The maximum output current is typically around 4A, but it's recommended to derate the current based on the ambient temperature and other system requirements.
  • The ISL8840AABZ has a thermal shutdown feature that protects the device from overheating. To ensure reliable operation, it's essential to provide adequate heat sinking, follow the recommended PCB layout guidelines, and ensure good airflow around the device. The maximum junction temperature (TJ) should not exceed 150°C, and the device should be operated within the specified thermal derating curves.
