ISL89162FBEBZ - Renesas Electronics

Description: Gate Drivers 6A PEAK HI SPD PWR MSFT DRVR 8LD EP

Download ISL89162FBEBZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

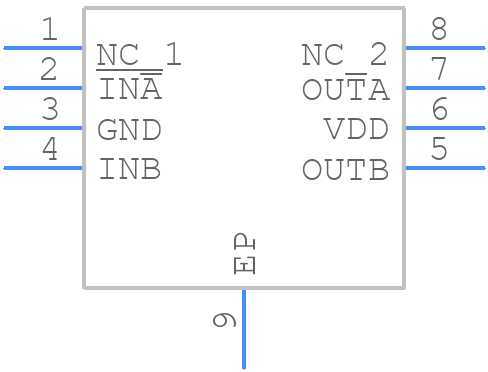

Symbol
ISL89162FBEBZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL89162FBEBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15D-1
click to zoom
3D Models
ISL89162FBEBZ - Renesas Electronics - 3D model - Small Outline Packages - M8.15D-1
click to zoom

ISL89162FBEBZ Details

  • Manufacturer Part Number:

    ISL89162FBEBZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HSOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-10-24

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    AND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.72 mm

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.05 µs

  • Width:

    3.9 mm

ISL89162FBEBZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • Renesas provides a compensation network design tool on their website, which can be used to generate a customized compensation network based on the specific application requirements. Additionally, the datasheet provides general guidelines for compensation network design.
  • The maximum allowed voltage on the EN pin is 6V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • The ISL89162FBEBZ is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Renesas provides a thermal derating chart in the datasheet to help designers estimate the device's performance at elevated temperatures.
  • Renesas provides guidelines for EMC design in their application note AN1965, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL89162FBEBZ Overview

Use the download button to access the ISL89162FBEBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL89, or try a keyword search, such as MOSFET Drivers
