Description:The ISL89163, ISL89164, and ISL89165 are high-speed, 6A, dual channel MOSFET drivers with enable inputs. Precision thresholds on all logic inputs allow the use of external RC circuits to generate accurate and stable time delays on both the main channel inputs, INA and INB, and the enable inputs, ENA and ENB. The precision delays capable of these precise logic thresholds makes these parts very useful for dead-time control and synchronous rectifiers. Note that the enable and input logic inputs can be intercha
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including derating the output current and voltage according to the temperature derating curve provided in the datasheet. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to reduce the junction temperature.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. This helps to filter out high-frequency noise and ensure stable operation. The exact value may vary depending on the specific application and input voltage ripple requirements.
To troubleshoot issues with the enable pin (EN), check that the pin is properly connected to a logic-level signal source, and that the voltage level meets the recommended specifications. Also, ensure that the EN pin is not floating or subject to noise, as this can cause the device to malfunction. Use an oscilloscope to verify the EN pin signal and check for any anomalies.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 47uF for the output capacitor. This helps to filter out high-frequency noise and ensure stable operation. The exact value may vary depending on the specific application and output voltage ripple requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL89164FBEBZ Overview

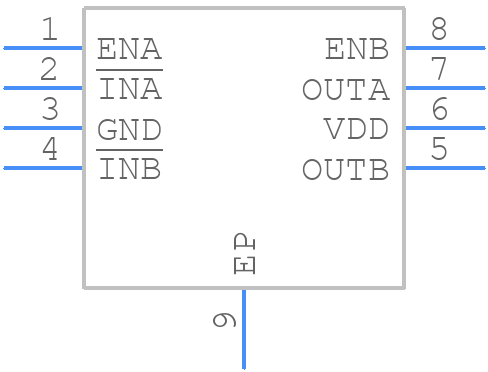

Use the download button to access the ISL89164FBEBZ schematic symbol, PCB footprint, and 3D model.
