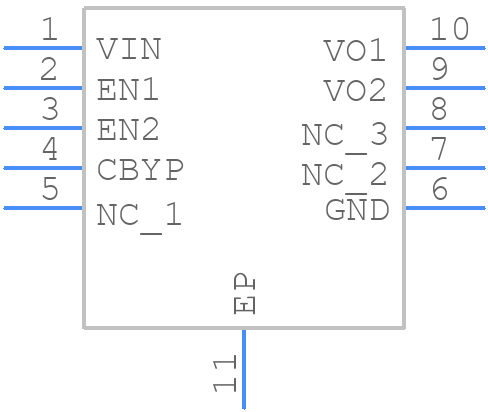

ISL9014IRKJZ-T - Renesas Electronics

ISL9014IRKJZ-T Details

• Manufacturer Part Number:

  ISL9014IRKJZ-T

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DFN-10

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Date Of Intro:

  2017-10-26

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.325 V

• Dropout Voltage1-Nom:

  0.2 V

• Dropout Voltage2-Max:

  0.4 V

• Input Voltage-Max:

  6.5 V

• Input Voltage-Min:

  3.85 V

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Load Regulation-Max:

  0.0285%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  10

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.3 A

• Output Current2-Max:

  0.3 A

• Output Voltage1-Max:

  2.9013 V

• Output Voltage1-Min:

  2.7987 V

• Output Voltage1-Nom:

  2.85 V

• Output Voltage2-Max:

  2.8504 V

• Output Voltage2-Min:

  2.7496 V

• Output Voltage2-Nom:

  2.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.11,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Regulator Type:

  FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.95 mm

• Surface Mount:

  YES

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
