ISL90842UIV1427Z - Renesas Electronics

Description: The ISL90842 integrates four digitally controlled potentiometers (DCP) configured as variable resistors on a monolithic CMOS integrated circuit. The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface. Each potentiometer has an associated Wiper Register (WR) that can be directly written to and read by the user. The contents of the WR controls the position of the wipe

Download ISL90842UIV1427Z Model

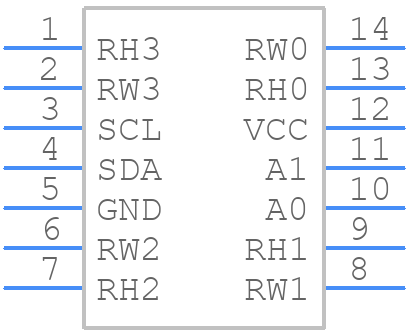

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

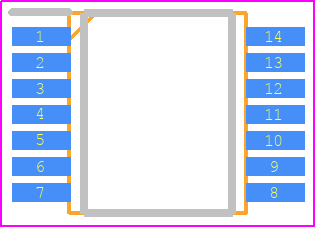

ISL90842UIV1427Z - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Plastic, TSSOP, Package Code V14
click to zoom
3D Models
ISL90842UIV1427Z - Renesas Electronics  - 3D model - Small Outline Packages - 14-Lead Plastic, TSSOP, Package Code V14
click to zoom

ISL90842UIV1427Z Details

  • Manufacturer Part Number:

    ISL90842UIV1427Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    MDP0044

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-26

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Positions:

    256

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    45 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    4.4 mm

ISL90842UIV1427Z Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal design, and consider derating the device's performance. Renesas provides thermal derating guidelines in the datasheet and application notes.
  • Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for input and output capacitors. The specific capacitor values and types may vary depending on the application and operating conditions. Consult the datasheet and application notes for more information.
  • Renesas provides troubleshooting guidelines in their application notes and FAQs. Common issues like output voltage instability or oscillations can be caused by improper PCB layout, inadequate decoupling, or incorrect component selection. Consult the datasheet and application notes for troubleshooting steps and guidelines.
  • Renesas provides EMI and EMC design guidelines in their application notes and datasheet. Key considerations include using a suitable PCB layout, shielding, and filtering to minimize electromagnetic interference and ensure compliance with regulatory standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL90842UIV1427Z Overview

Use the download button to access the ISL90842UIV1427Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL90, or try a keyword search, such as Digital Potentiometers
