Description:ISL9105 is a 600mA, 1. 6MHz step-down regulator that is ideal for powering low-voltage microprocessors in handheld devices such as PDAs and cellular phones. It is optimized for generating low output voltages down to 0. 8V. The supply voltage range is from 2. 7V to 5. 5V, allowing for the use of a single Li+ cell, three NiMH cells or a regulated 5V input. It has a guaranteed minimum output current of 600mA. 1. 6MHz pulse-width modulation (PWM) switching frequency allows for use of small external components.
Renesas provides a recommended PCB layout in the ISL9105IRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure the device operates within the SOA, it's essential to follow the recommended startup and shutdown sequences outlined in the datasheet. Additionally, consider using a soft-start circuit to limit the inrush current and voltage during startup, and ensure the input voltage and current are within the specified limits during shutdown.
Input voltage ripple can affect the device's performance and reliability. High-frequency ripple can cause increased noise and reduced efficiency, while low-frequency ripple can lead to output voltage droop and reduced stability. It's essential to ensure the input voltage ripple is within the specified limits and to use adequate input filtering to minimize its impact.
To optimize the device's performance for a specific application, consider the following: for battery-powered devices, optimize the device's quiescent current and shutdown current to minimize power consumption; for high-temperature environments, ensure the device is operated within the specified temperature range and consider using thermal management techniques such as heat sinks or thermal interfaces.
Renesas recommends using a combination of EMI filtering and shielding techniques, including input and output filtering, decoupling capacitors, and shielding of sensitive nodes. Additionally, consider using a metal shield or a shielded inductor to minimize radiated emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL9105IRZ-T Overview

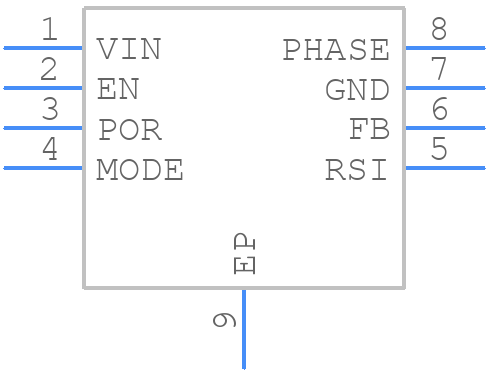

Use the download button to access the ISL9105IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL91,
or try a keyword search, such as Switching Regulator or Controllers
