Part Image

ISL91133IIMZ-T - Renesas Electronics

Description: The ISL91133 is an integrated boost switching regulator for battery powered applications. The device provides a power supply solution for products using a one cell Li-ion or Li-polymer battery. The device is capable of delivering up to 2.3A output current from VIN = 2.5V and VOUT = 3.3V. The no load quiescent current is only 108μA in Boost Mode and 45μA in Forced Bypass Mode, which significantly reduces the standby consumption.The ISL91133 offers a Bypass Mode operation where the output is directly connecte

Download ISL91133IIMZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

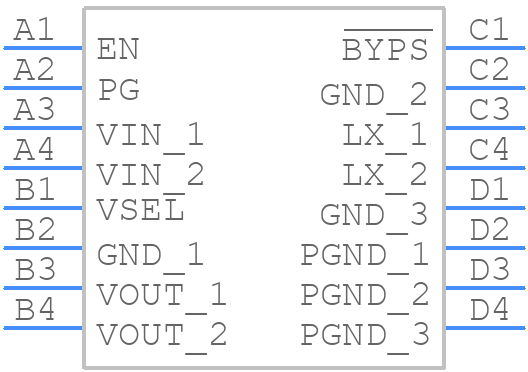

Symbol
ISL91133IIMZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL91133IIMZ-T - Renesas Electronics PCB footprint - BGA - BGA - 16 Ball WLCSP
click to zoom
3D Models
ISL91133IIMZ-T - Renesas Electronics - 3D model - BGA - 16 Ball WLCSP
click to zoom

ISL91133IIMZ-T Details

  • Manufacturer Part Number:

    ISL91133IIMZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WLCSP-TKCURDLBC

  • Package Description:

    WLCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    W4X4.16E

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.35 V

  • Input Voltage-Nom:

    2.5 V

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    1.78 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.3 A

  • Output Voltage-Max:

    5.2 V

  • Output Voltage-Min:

    3.15 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.59 mm

  • Supply Current-Max (Isup):

    0.15 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2900 kHz

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.78 mm

ISL91133IIMZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the ISL91133 evaluation board user manual, which includes guidelines for component placement, thermal management, and routing. Following this guide can help ensure optimal performance and minimize noise and thermal issues.
  • The selection of the inductor depends on the specific application requirements, such as output voltage, current, and ripple current. Renesas provides a list of recommended inductors in the datasheet, and engineers can also use online inductor selection tools or consult with inductor manufacturers to find the best fit for their design.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation depends on the specific application and thermal management. In general, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation and minimize thermal stress on the device.
  • The ISL91133 has built-in OVP and UVP features, but engineers may need to add external components to customize the protection thresholds. Renesas provides application notes and design examples that illustrate how to implement OVP and UVP in different scenarios.
  • The recommended input capacitor type and value depend on the specific application requirements, such as input voltage, current, and ripple current. In general, a low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for most applications. Renesas provides guidance on input capacitor selection in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL91133IIMZ-T Overview

Use the download button to access the ISL91133IIMZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL91, or try a keyword search, such as Switching Regulator or Controllers
