ISL91133IIQZ-T - Renesas Electronics

Description: The ISL91133 is an integrated boost switching regulator for battery powered applications. The device provides a power supply solution for products using a one cell Li-ion or Li-polymer battery. The device is capable of delivering up to 2.3A output current from VIN = 2.5V and VOUT = 3.3V. The no load quiescent current is only 108μA in Boost Mode and 45μA in Forced Bypass Mode, which significantly reduces the standby consumption.The ISL91133 offers a Bypass Mode operation where the output is directly connecte

Download ISL91133IIQZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

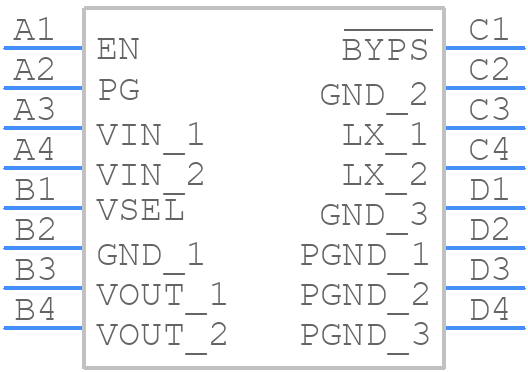

Symbol
ISL91133IIQZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL91133IIQZ-T - Renesas Electronics PCB footprint - BGA - BGA - 16 Ball WLCSP_
click to zoom
3D Models
ISL91133IIQZ-T - Renesas Electronics - 3D model - BGA - 16 Ball WLCSP_
click to zoom

ISL91133IIQZ-T Details

  • Manufacturer Part Number:

    ISL91133IIQZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WLCSP-TKCURDLBC

  • Package Description:

    WLCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    W4X4.16E

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.35 V

  • Input Voltage-Nom:

    2.5 V

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    1.78 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.3 A

  • Output Voltage-Max:

    5.2 V

  • Output Voltage-Min:

    3.15 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.59 mm

  • Supply Current-Max (Isup):

    0.15 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2900 kHz

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.78 mm

ISL91133IIQZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the ISL91133IIQZ-T evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of the inductor depends on the specific application requirements, such as output voltage, current, and ripple. Renesas provides a list of recommended inductors in the datasheet, and engineers can also use online inductor selection tools or consult with inductor manufacturers to find the best fit for their design.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation depends on the specific application and cooling conditions. As a general guideline, Renesas recommends keeping the ambient temperature below 85°C for optimal reliability and performance.
  • The ISL91133IIQZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the calculation of the required resistor and capacitor values.
  • Renesas recommends using a high-quality, low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The specific capacitor type and value may vary depending on the input voltage and current requirements of the application.
