ISL95311WIU10Z - Renesas Electronics

Description: Terminal Voltage 0V to 13. 2V, 128 Taps I2C Interface The Intersil ISL95311 is a digitally controlled potentiometer (XDCP). The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by an I2C interface. The potentiometer is implemented by a resistor array composed of 127 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The wiper of the potentiome

Download ISL95311WIU10Z Model

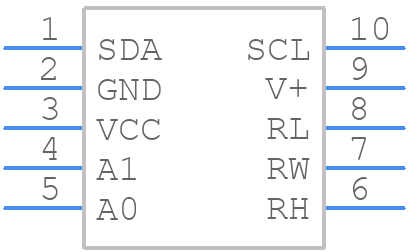

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL95311WIU10Z - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M10.118
click to zoom
3D Models
ISL95311WIU10Z - Renesas Electronics  - 3D model - Small Outline Packages - M10.118
click to zoom

ISL95311WIU10Z Details

  • Manufacturer Part Number:

    ISL95311WIU10Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    M10.118

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-11-15

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Positions:

    128

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    13.2 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    45 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

ISL95311WIU10Z Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including derating the output current and voltage according to the temperature derating curve provided in the datasheet. Additionally, ensure proper thermal design and heat sinking to keep the junction temperature within the recommended range.
  • Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor (CIN). This helps to filter out high-frequency noise and ensure stable operation.
  • To troubleshoot OCP issues, check the input voltage, output current, and sense resistor values to ensure they are within the recommended ranges. Also, verify that the OCP threshold is set correctly and that the sense resistor is properly connected. If issues persist, consult the datasheet and application notes for further guidance.
  • Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 47uF for the output capacitor (COUT). This helps to filter out high-frequency noise and ensure stable operation.
