ISL95810UART8Z-T - Renesas Electronics

Description: The ISL95810 integrates a digitally controlled potentiometer (XDCP) on a monolithic CMOS integrated circuit. The digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wiper is controlled by the user through the I2C bus interface. The potentiometer has an associated volatile Wiper Register (WR) and a non-volatile Initial Value Register (IVR), that can be directly written to and read by the user. The content of the WR controls the posi

Download ISL95810UART8Z-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

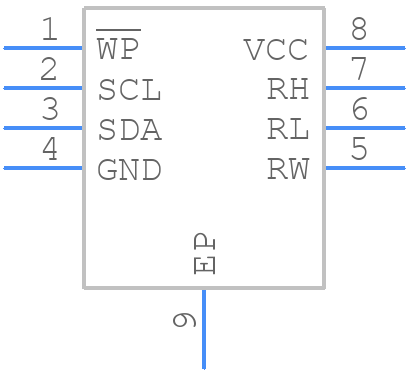

Symbol
ISL95810UART8Z-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL95810UART8Z-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L8.3x3B
click to zoom
3D Models
ISL95810UART8Z-T - Renesas Electronics - 3D model - Small Outline No-lead - L8.3x3B
click to zoom

ISL95810UART8Z-T Details

  • Manufacturer Part Number:

    ISL95810UART8Z-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TDFN

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.3X3A

  • Country Of Origin:

    Malaysia, Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL95810UART8Z-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ISL95810UART8Z-T is -40°C to +85°C.
  • The ISL95810UART8Z-T can be configured for I2C or SMBus interface by setting the appropriate values for the SCL and SDA pins. Refer to the datasheet for specific pin configurations and settings.
  • The maximum current rating for the ISL95810UART8Z-T is 3.3V/1.5A for VCC and 1.8V/1.5A for VDDQ.
  • Power sequencing can be implemented using the EN pin, which allows the device to be powered up or down in a specific sequence. Refer to the datasheet for specific power sequencing guidelines.
  • The RST pin is used to reset the device and return it to its default state. It can be used to recover from errors or to initialize the device during power-up.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL95810UART8Z-T Overview

Use the download button to access the ISL95810UART8Z-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL95, or try a keyword search, such as Digital Potentiometers
