Description:The ISL97635A is a digitally controlled LED driver that controls 6 channels of LED current for LCD backlight applications. The ISL97635A is capable of driving typically 54 (6x9) pieces of 3. 5V/30mA or 60 (6x10) pieces of 3. 2V/20mA LEDs. The ISL97635A contains 6 channels of voltage controlled current sources with typical currents matching of ±1%, which compensate for the non-uniformity effect of forward voltages variance in the LED stacks. To minimize the voltage headroom and power loss in the typical mult
Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current. Renesas recommends using a low-ESR ceramic capacitor with a value between 4.7uF to 10uF, and a voltage rating of at least 1.5 times the input voltage. Refer to the application note AN1995 for more details.
The ISL97635AIRZ-TK is rated for operation up to 85°C ambient temperature, but the maximum junction temperature (TJ) should not exceed 125°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the ISL97635AIRZ-TK is designed to withstand vibrations up to 10G peak acceleration. However, ensure that the PCB is properly secured and the components are properly soldered to prevent mechanical stress and damage.
Renesas provides a troubleshooting guide in the application note AN1995, which covers common issues and their solutions. Additionally, check the input voltage, output current, and thermal design to ensure they are within the recommended specifications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL97635AIRZ-TK Overview

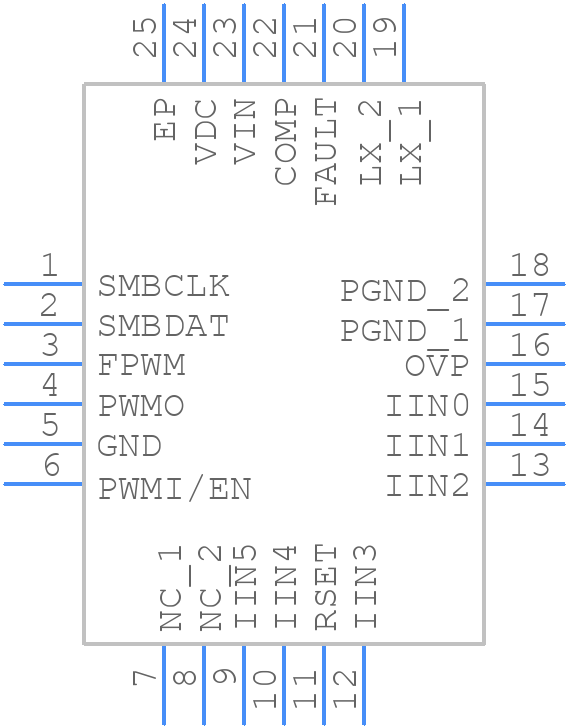

Use the download button to access the ISL97635AIRZ-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL97,
or try a keyword search, such as Display Drivers
