Description:The ISL97678 is an 8-channel PWM dimming LED driver for LCD backlight applications. The ISL97678 is capable of driving up to 96 pieces of 3. 4V/50mA LEDs but larger numbers of LEDs are possible if the LED forward voltage combined is less than 45V. The ISL97678 has 8 channels of voltage controlled current sources with typical currents matching to ±1%, which compensate for the non-uniformity effect of forward voltages variance in the LED strings. To minimize the voltage headroom and power loss in the typical
The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane, using thermal vias to connect the exposed pad to the ground plane, and keeping the thermal path as short as possible.
To ensure proper power-up and configuration, follow the recommended power-up sequence, connect the EN pin to a valid logic level, and ensure the input voltage is within the specified range. Also, configure the device according to the datasheet recommendations for the desired operating mode.
Not using the internal soft-start feature may result in higher inrush currents, which can cause voltage drops, electromagnetic interference (EMI), and increased stress on the input capacitors. It is recommended to use the internal soft-start feature to minimize these effects.
To troubleshoot OCP issues, check the input voltage, output current, and sense resistor values. Ensure the sense resistor is properly connected and the OCP threshold is set correctly. Also, verify that the device is not overheating, and the input voltage is within the specified range.
When using the ISL97678IRZ-T in a high-temperature environment, ensure the device is properly derated according to the datasheet recommendations. Also, consider using a heat sink, improving airflow, and reducing the power dissipation to minimize thermal stress.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL97678IRZ-T Overview

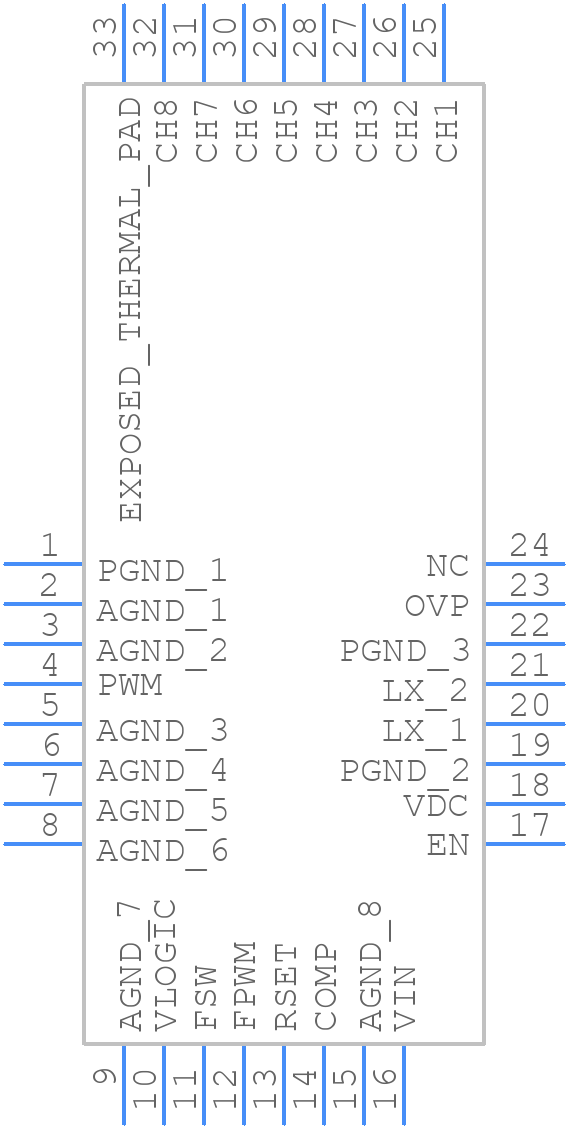

Use the download button to access the ISL97678IRZ-T schematic symbol, PCB footprint, and 3D model.
