Description:The ISL97678 is an 8-channel PWM dimming LED driver for LCD backlight applications. The ISL97678 is capable of driving up to 96 pieces of 3. 4V/50mA LEDs but larger numbers of LEDs are possible if the LED forward voltage combined is less than 45V. The ISL97678 has 8 channels of voltage controlled current sources with typical currents matching to ±1%, which compensate for the non-uniformity effect of forward voltages variance in the LED strings. To minimize the voltage headroom and power loss in the typical
Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value of 10uF to 22uF. Additionally, consider the capacitor's ESR, ripple current rating, and temperature rating.
The ISL97678IRZ is rated for operation up to 85°C ambient temperature, but derating is required for temperatures above 70°C. Consult the datasheet for derating curves and thermal management guidelines to ensure reliable operation.
Check the input voltage, output load, and feedback resistors for correct values and connections. Verify that the output capacitor is properly selected and connected. Use an oscilloscope to measure the output voltage ripple and noise, and check for signs of oscillation or instability.
Yes, the ISL97678IRZ is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards or customer requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL97678IRZ Overview

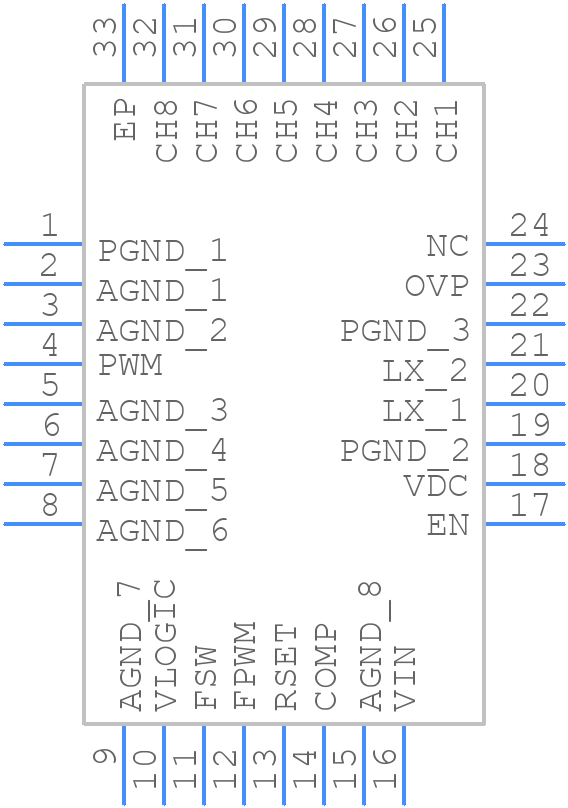

Use the download button to access the ISL97678IRZ schematic symbol, PCB footprint, and 3D model.
