Description:The ISL97682, ISL97683, ISL97684 are Renesas' highly integrated 2-3-4-channel LED drivers that are suitable for medium size TFT-LCD backlights. These parts can drive multiple channels of LEDs from inputs as low as 4V to outputs of up to 45V. They can also operate from inputs as low as 3V to outputs of up to 26. 5V in bootstrap configuration. The ISL97682, ISL97683, ISL97684 feature optional channels phase shift control. This feature is used to minimize the input, output ripple characteristics and load trans
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
To ensure proper power-up and configuration, follow the recommended power-up sequence, ensure the input voltage is within the specified range, and configure the device according to the datasheet's recommended settings.
When selecting output capacitors, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. The ESR should be low, the capacitance value should be sufficient to filter out ripple, and the voltage rating should be higher than the output voltage.
To troubleshoot output voltage regulation issues, check the input voltage, output capacitor selection, and PCB layout. Ensure the input voltage is within the specified range, the output capacitors are properly selected, and the PCB layout is optimized for thermal performance.
Operating the device outside of the recommended operating conditions can lead to reduced performance, decreased efficiency, and potentially even damage to the device. Always operate the device within the specified temperature range, input voltage range, and output current range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL97682IRTZ-TK Overview

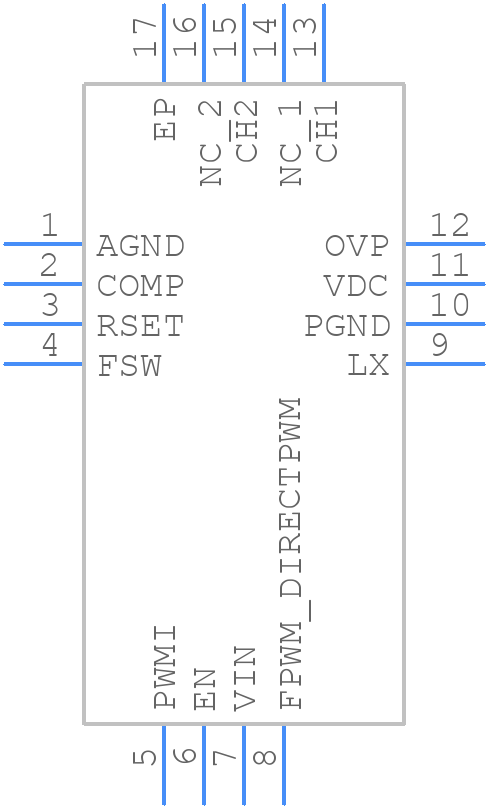

Use the download button to access the ISL97682IRTZ-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL97,
or try a keyword search, such as Display Drivers
