ISL97682IRTZ - Renesas Electronics

Description: The ISL97682, ISL97683, ISL97684 are Renesas' highly integrated 2-3-4-channel LED drivers that are suitable for medium size TFT-LCD backlights. These parts can drive multiple channels of LEDs from inputs as low as 4V to outputs of up to 45V. They can also operate from inputs as low as 3V to outputs of up to 26. 5V in bootstrap configuration. The ISL97682, ISL97683, ISL97684 feature optional channels phase shift control. This feature is used to minimize the input, output ripple characteristics and load trans

Download ISL97682IRTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

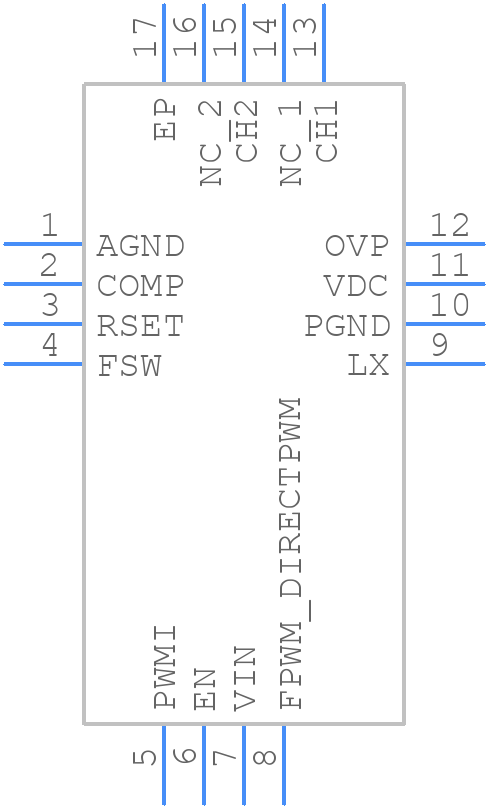

Symbol
ISL97682IRTZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL97682IRTZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.3x3D-2
click to zoom
3D Models
ISL97682IRTZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.3x3D-2
click to zoom

ISL97682IRTZ Details

  • Manufacturer Part Number:

    ISL97682IRTZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.3X3D

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    24

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    26.5 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    0.03 MHz

ISL97682IRTZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To optimize output voltage accuracy and stability, ensure that the input voltage is within the recommended range, use a high-quality output capacitor with low ESR, and minimize noise on the FB pin by using a quiet voltage source and proper PCB layout.
  • The maximum output current capability of the ISL97682IRTZ is 2A, but it can be limited by the thermal performance of the PCB and the ambient temperature. Ensure that the device is properly heatsinked and the ambient temperature is within the recommended range.
  • The ISL97682IRTZ has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be achieved by using external components such as TVS diodes and voltage supervisors to detect and respond to fault conditions.
  • Renesas recommends using a high-quality, low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL97682IRTZ Overview

Use the download button to access the ISL97682IRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL97, or try a keyword search, such as Display Drivers
