Description:The ISL97682, ISL97683, ISL97684 are Renesas' highly integrated 2-3-4-channel LED drivers that are suitable for medium size TFT-LCD backlights. These parts can drive multiple channels of LEDs from inputs as low as 4V to outputs of up to 45V. They can also operate from inputs as low as 3V to outputs of up to 26. 5V in bootstrap configuration. The ISL97682, ISL97683, ISL97684 feature optional channels phase shift control. This feature is used to minimize the input, output ripple characteristics and load trans
Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current. Renesas recommends using a low-ESR capacitor with a value between 4.7uF to 10uF, and a voltage rating of at least 1.5 times the maximum input voltage.
The ISL97683IRTZ-TK is rated for operation up to 105°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation at high temperatures. Consult the datasheet and application notes for more information.
Check the input voltage, output voltage, and output current to ensure they are within the recommended operating ranges. Verify the feedback resistors and capacitors are correctly connected and meet the recommended values. Consult the datasheet and application notes for troubleshooting guidelines.
Yes, the ISL97683IRTZ-TK is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, it's essential to follow the recommended design guidelines, testing, and validation procedures to ensure the device meets the specific application requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL97683IRTZ-TK Overview

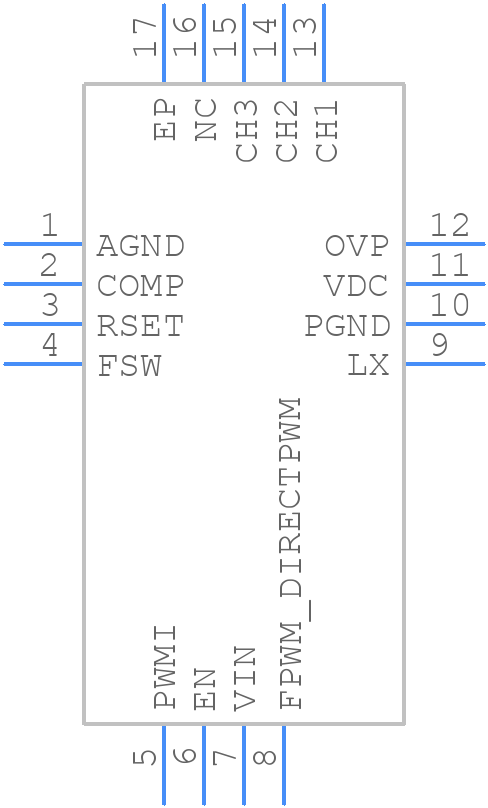

Use the download button to access the ISL97683IRTZ-TK schematic symbol, PCB footprint, and 3D model.
