Description:The ISL97682, ISL97683, ISL97684 are Renesas' highly integrated 2-3-4-channel LED drivers that are suitable for medium size TFT-LCD backlights. These parts can drive multiple channels of LEDs from inputs as low as 4V to outputs of up to 45V. They can also operate from inputs as low as 3V to outputs of up to 26. 5V in bootstrap configuration. The ISL97682, ISL97683, ISL97684 feature optional channels phase shift control. This feature is used to minimize the input, output ripple characteristics and load trans
Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current. Renesas recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 1.5 times the maximum input voltage. The application note AN1995 provides more detailed guidance on input capacitor selection.
The ISL97684IRTZ-T is rated for operation up to 105°C ambient temperature, but the maximum ambient temperature for reliable operation depends on the specific application and thermal design. Renesas recommends derating the device's power dissipation and output current at higher ambient temperatures to ensure reliable operation.
Renesas provides a troubleshooting guide in the application note AN1995, which covers common issues and their causes, as well as recommended debugging techniques and tools. Additionally, Renesas' technical support team can provide further assistance and guidance.
Yes, the ISL97684 is a high-frequency switching regulator, and EMI/EMC considerations are critical for reliable operation. Renesas recommends following the guidelines in the application note AN1995 for PCB layout, component selection, and shielding to minimize EMI/EMC issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL97684IRTZ-T Overview

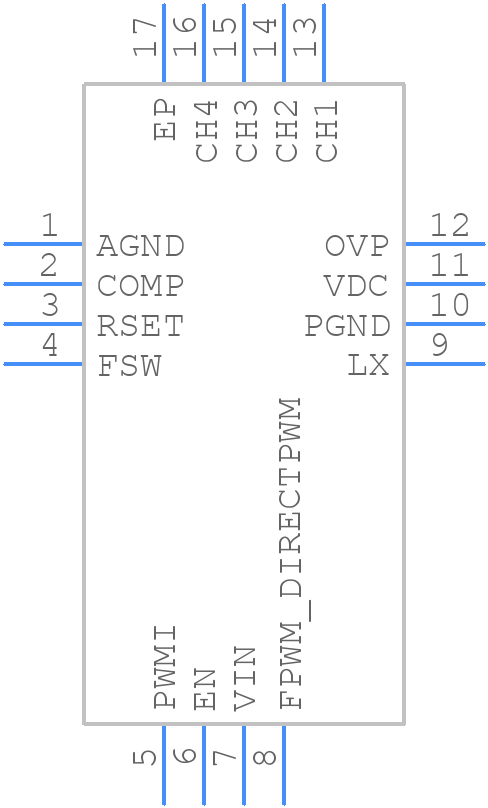

Use the download button to access the ISL97684IRTZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL97,
or try a keyword search, such as Display Drivers
