Description:The ISL97682, ISL97683, ISL97684 are Renesas' highly integrated 2-3-4-channel LED drivers that are suitable for medium size TFT-LCD backlights. These parts can drive multiple channels of LEDs from inputs as low as 4V to outputs of up to 45V. They can also operate from inputs as low as 3V to outputs of up to 26. 5V in bootstrap configuration. The ISL97682, ISL97683, ISL97684 feature optional channels phase shift control. This feature is used to minimize the input, output ripple characteristics and load trans
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
To ensure reliable operation across the entire operating temperature range, it is essential to follow proper PCB design and layout guidelines, use a suitable thermal management strategy, and ensure that the device is operated within its specified voltage and current ratings.
When selecting output capacitors, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low ESR and a high capacitance value can help to reduce output voltage ripple and improve overall system stability.
To troubleshoot issues related to output voltage regulation, check the input voltage, output voltage, and output current. Verify that the device is operated within its specified voltage and current ratings, and that the output capacitors are properly selected and connected.
If the enable pin (EN) is not used properly, it can lead to unpredictable behavior, including incorrect output voltage, excessive current consumption, or even device damage. Ensure that the EN pin is properly connected and controlled to avoid these issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL97684IRTZ-TK Overview

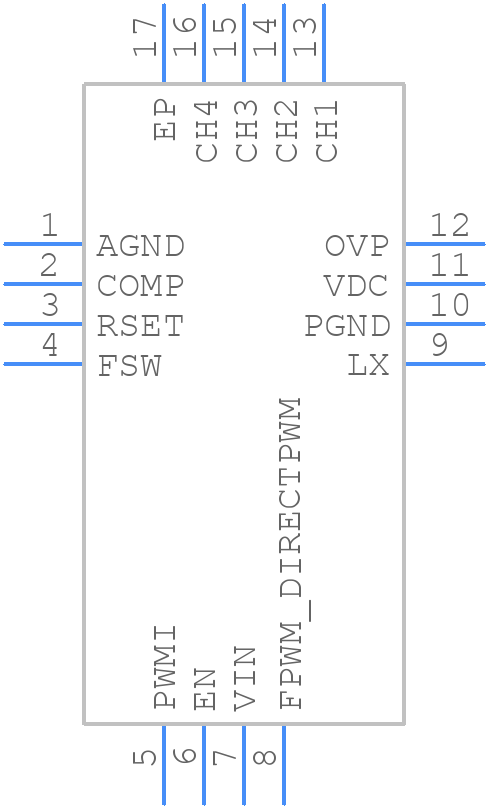

Use the download button to access the ISL97684IRTZ-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL97,
or try a keyword search, such as Display Drivers
