ISL97692IRTZ - Renesas Electronics

Description: The ISL97692, ISL97693, ISL97694A are Intersil’s highly integrated 4- and 6-channel LED drivers for display backlighting. These parts maximize battery life by featuring only 1mA quiescent current, and by operating down to 2. 4V input voltage, with no need for higher voltage supplies. The ISL97692 has four channels and provides 8-bit PWM dimming with adjustable dimming frequency up to 30kHz. The ISL97693 has six channels with Direct PWM dimming control. The ISL97694A has 6 channels and provides 8-, 10-, or 1

Download ISL97692IRTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

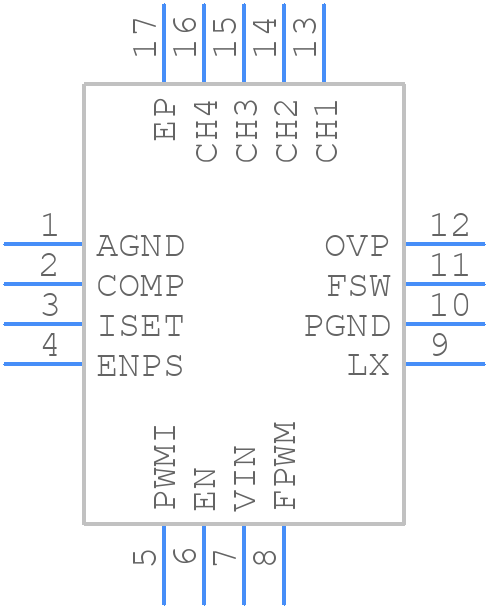

ISL97692IRTZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL97692IRTZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.3x3D-
click to zoom
3D Models
ISL97692IRTZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.3x3D-
click to zoom

ISL97692IRTZ Details

  • Manufacturer Part Number:

    ISL97692IRTZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.3X3D

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    0.4 MHz

ISL97692IRTZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To optimize output voltage accuracy and stability, ensure that the input voltage is within the recommended range, use a high-quality output capacitor with low ESR, and minimize noise on the FB pin by using a quiet voltage source and proper PCB layout.
  • The maximum output current capability of the ISL97692IRTZ is 2A, but it can be limited by the thermal performance of the PCB and the ambient temperature. Ensure that the device is properly heatsinked and the ambient temperature is within the recommended range.
  • The ISL97692IRTZ has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be achieved by using external components such as TVS diodes and voltage supervisors to detect and respond to fault conditions.
  • Renesas recommends using a high-quality, low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. This helps to filter out noise and ensure stable operation.
