Description:The ISL98607 is a high efficiency power supply for small size displays, like smart phones, requiring ±supply rails. It integrates boost regulator, LDO, and inverting charge pump that are used to generate two output rails: +5V (default) and -5V (default). The ±5V output voltages can be adjusted up to ±5. 7V with 50mV steps using the I2C interface. The ISL98607 integrates synchronous rectification MOSFETs for the boost regulator and inverting charge pump, which maximizes conversion efficiency. The ISL98607 in
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal shutdown or warning mechanisms if necessary.
Operating the ISL98607EIAZ-T outside the recommended input voltage range of 12V ± 10% may affect its performance, efficiency, and reliability. A lower input voltage may reduce the output current capability, while a higher input voltage may increase the risk of overvoltage stress and reduce the device's lifespan. It's essential to consult the datasheet and application notes for specific guidance on input voltage tolerance.
To troubleshoot OCP issues, start by verifying that the input voltage and output current are within the recommended specifications. Check for any signs of overheating, and ensure that the device is properly soldered and mounted. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the datasheet and application notes for guidance on OCP threshold and response time.
To minimize EMI and ensure EMC compliance, follow the recommended PCB layout and component placement guidelines, use a suitable EMI filter, and implement proper shielding and grounding techniques. Additionally, consider using a spread-spectrum clock generator to reduce EMI emissions, and consult the datasheet and application notes for specific guidance on EMI and EMC considerations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL98607EIAZ-T Overview

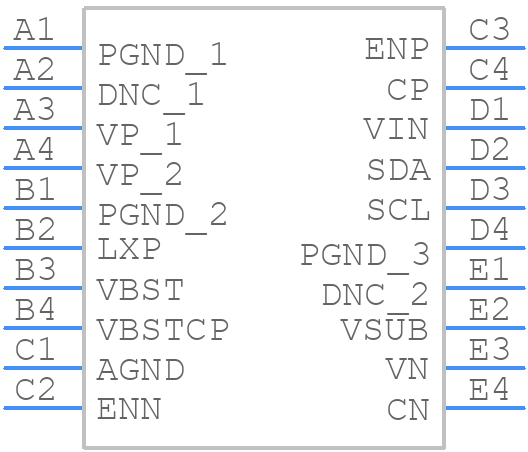

Use the download button to access the ISL98607EIAZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL98,
or try a keyword search, such as Switching Regulator or Controllers
