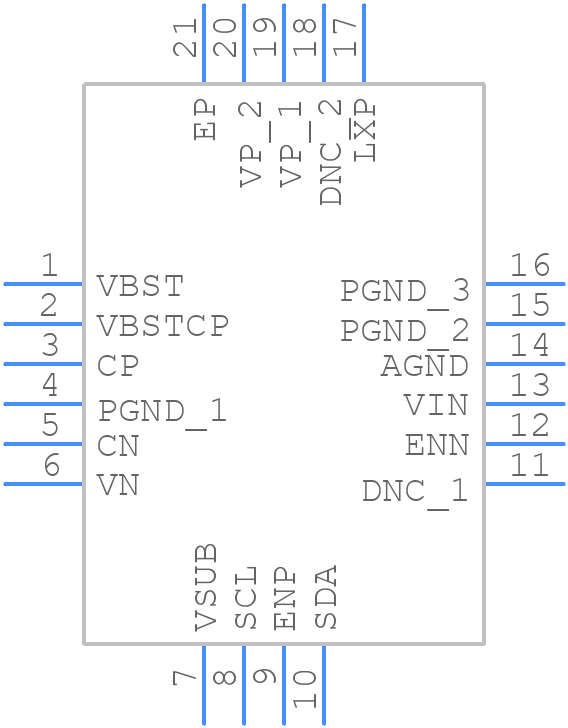

ISL98607IRTZR5622 - Renesas Electronics

ISL98607IRTZR5622 Details

• Manufacturer Part Number:

  ISL98607IRTZR5622

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TQFN

• Package Description:

  TQFN-20

• Pin Count:

  20

• Manufacturer Package Code:

  L20.3X4A

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  4.8 V

• Input Voltage-Min:

  2.8 V

• Input Voltage-Nom:

  3.7 V

• JESD-30 Code:

  R-PQCC-N20

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1 A

• Output Voltage-Max:

  5 V

• Output Voltage-Min:

  -5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  1600 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
