ISM330DHCXTR - STMicroelectronics

Description: iNEMO inertial module with embedded Machine Learning Core: always-on 3D accelerometer and 3D gyroscope with digital output for industrial applications

Download ISM330DHCXTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

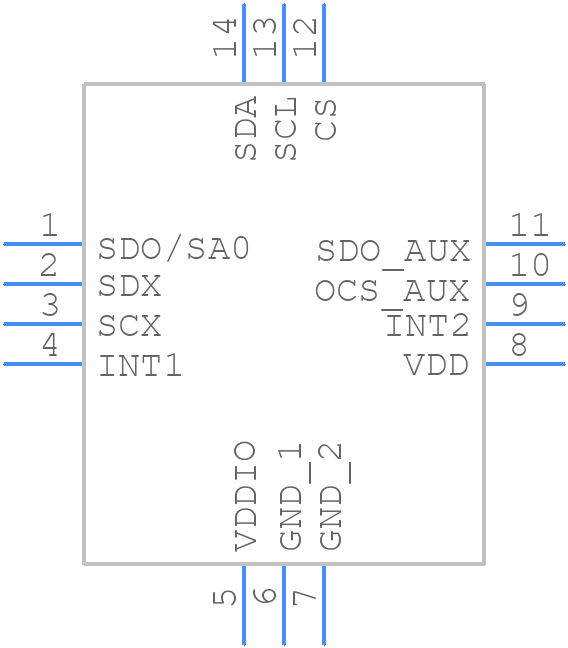

ISM330DHCXTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ISM330DHCXTR - STMicroelectronics PCB footprint - Other - Other - LGA-14(2.5x3x0.86)
click to zoom
3D Models
ISM330DHCXTR - STMicroelectronics - 3D model - Other - LGA-14(2.5x3x0.86)
click to zoom

ISM330DHCXTR Details

  • Manufacturer Part Number:

    ISM330DHCXTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-07-31

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.86 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.2-1.42V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LGA14,4X3(UNSPEC)

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

ISM330DHCXTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5126, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The ISM330DHCXTR does not require calibration, as it is a factory-calibrated device. However, you may need to perform a zero-point calibration to adjust for any offset or bias in your specific application.
  • The ISM330DHCXTR can operate from -40°C to 85°C, but the accuracy and performance may degrade at extreme temperatures. It's essential to consider the temperature range of your application and ensure the device is within its specified operating range.
  • Yes, the ISM330DHCXTR is designed to operate in high-vibration environments. However, it's essential to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • The ISM330DHCXTR communicates through a standard SPI or I2C interface. You can use a microcontroller with a compatible interface to read data from the accelerometer. STMicroelectronics provides example code and libraries for popular microcontrollers.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISM330DHCXTR Overview

Use the download button to access the ISM330DHCXTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISM33, or try a keyword search, such as Other Sensors/Transducers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
