Part Image

ISO1H812G - Infineon

Description: Smart High-Side Power Switch 0.7A SO-36 Infineon ISO1H812G, Octal Intelligent Power Switch, High Side, 0.625A, -0.5 → 6.5V, 36-Pin, DSO

Download ISO1H812G Model

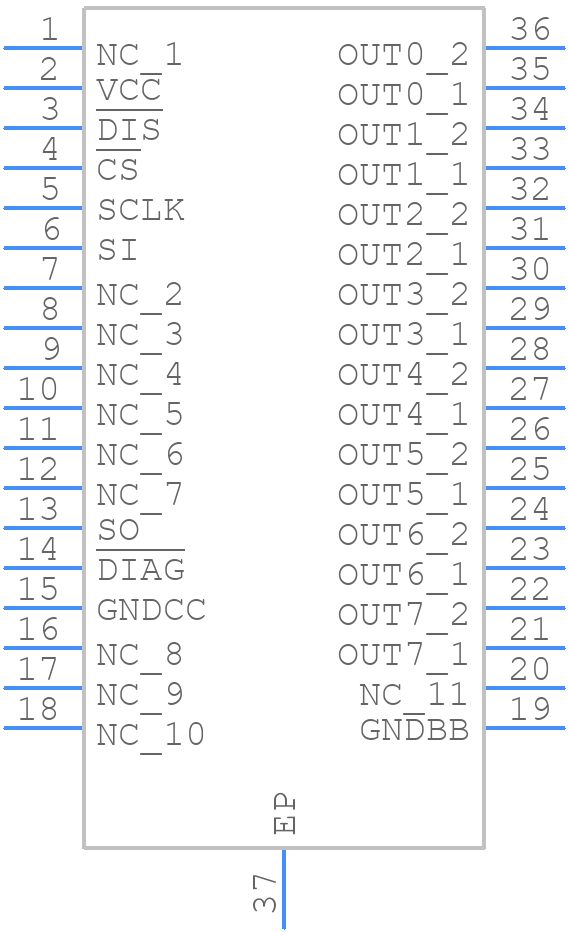

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

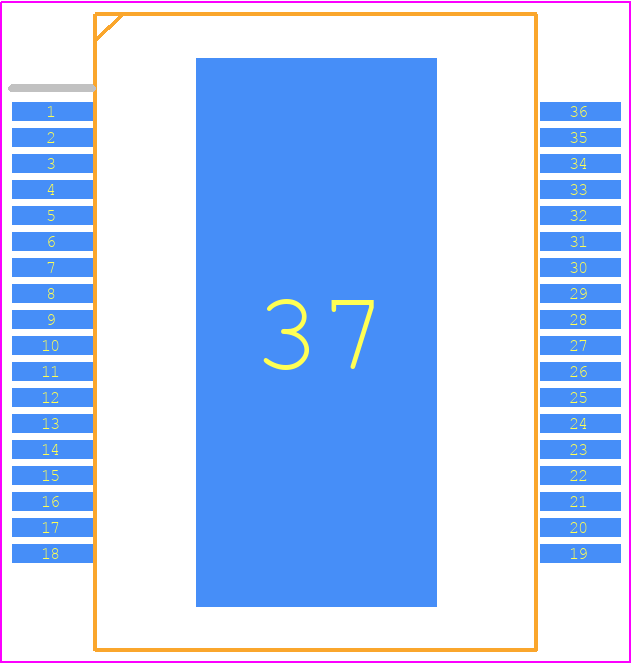

ISO1H812G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-36_1
click to zoom
3D Models
ISO1H812G - Infineon  - 3D model - Small Outline Packages - PG-DSO-36_1
click to zoom

ISO1H812G Details

  • Manufacturer Part Number:

    ISO1H812G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, DSOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.12

  • Driver Number of Bits:

    8

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    36

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    2.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

ISO1H812G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ISO1H812G is -40°C to 125°C.
  • To ensure EMC, follow proper PCB design guidelines, use a shielded cable, and consider adding EMI filters or common-mode chokes to the design.
  • Follow the recommended layout and routing guidelines in the datasheet, keeping sensitive analog signals away from digital signals and using a solid ground plane to reduce noise.
  • Follow the recommended power-up and power-down sequences in the datasheet to ensure proper device operation and prevent latch-up or damage.
  • Use a high-speed oscilloscope and a signal generator to test the device, and follow the recommended test and measurement methods outlined in the datasheet.
