ISO1H815GAUMA1 footprint, schematic symbol and 3D model by Infineon

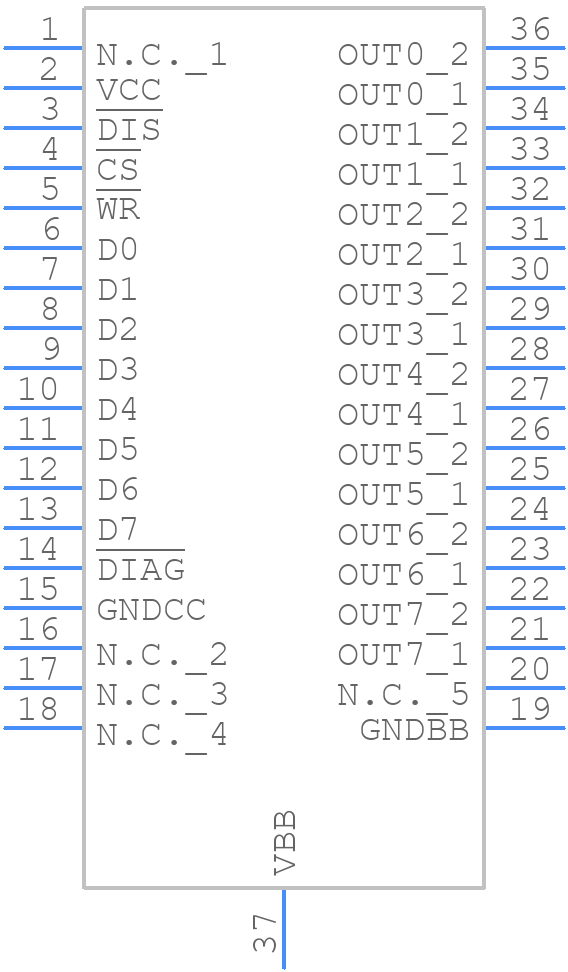

Symbol

click to zoom

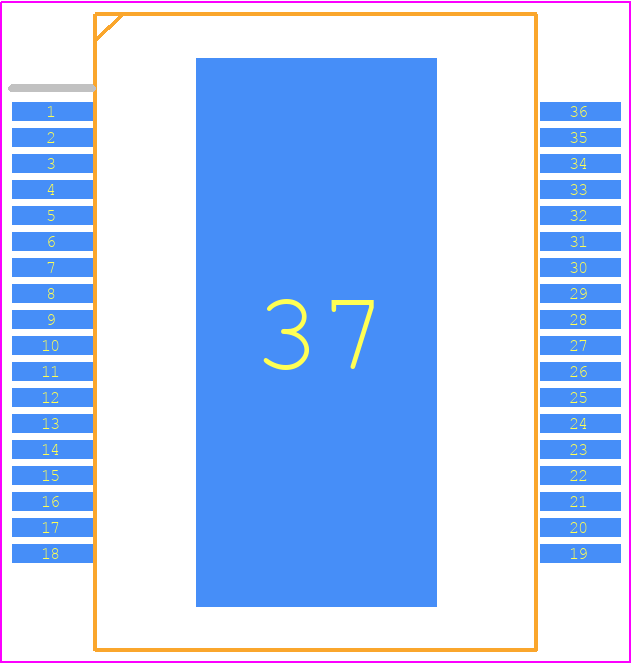

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISO1H815GAUMA1
Part Number ISO1H815GAUMA1
Manufacturer Infineon
Pin Count 37
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PG-DSO-36
Released Date Dec 19, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ISO1H815GAUMA1 Details

Manufacturer Part Number:
ISO1H815GAUMA1
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC
Package Description:
GREEN, PLASTIC, DSOP-36
Pin Count:
36
Country Of Origin:
Indonesia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
13 Weeks
Manufacturer:
Infineon Technologies AG
YTEOL:
6.12
Driver Number of Bits:
8
Interface IC Type:
HALF BRIDGE BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G36
JESD-609 Code:
e3
Moisture Sensitivity Level:
3
Number of Terminals:
36
Output Current Flow Direction:
SINK
Output Current-Max:
1.2 A
Output Peak Current Limit-Nom:
4.4 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP36,.56
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Qualification Status:
Not Qualified
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL

ISO1H815GAUMA1 Frequently Asked Questions (FAQs)

The maximum operating temperature range for the ISO1H815GAUMA1 is -40°C to 125°C.
To ensure EMC, follow the layout and grounding guidelines provided in the datasheet, and use proper shielding and filtering techniques to minimize electromagnetic interference.
The recommended PCB layout for the ISO1H815GAUMA1 involves using a multi-layer board with a solid ground plane, and placing the device near the center of the board to minimize noise and radiation.
Handle the high-voltage pins with care, as they can be damaged by electrostatic discharge (ESD). Use proper ESD protection measures, such as wrist straps and anti-static mats, when handling the device.
The recommended power-up sequence for the ISO1H815GAUMA1 involves applying the power supply voltage (VCC) before the input voltage (VIN), and ensuring that the enable pin (EN) is high before applying VIN.

Trust Checks

Community Provided

System Verified

Community Approved

ISO1H815GAUMA1 Overview

Use the download button to access the ISO1H815GAUMA1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ISO1H, or try a keyword search, such as Peripheral Drivers
