ISO1I813TXUMA1 - Infineon

Description: INFINEON - ISO1I813TXUMA1 - POWER SWITCH, HIGH-SIDE, 5.5V, TSSOP-48

Download ISO1I813TXUMA1 Model

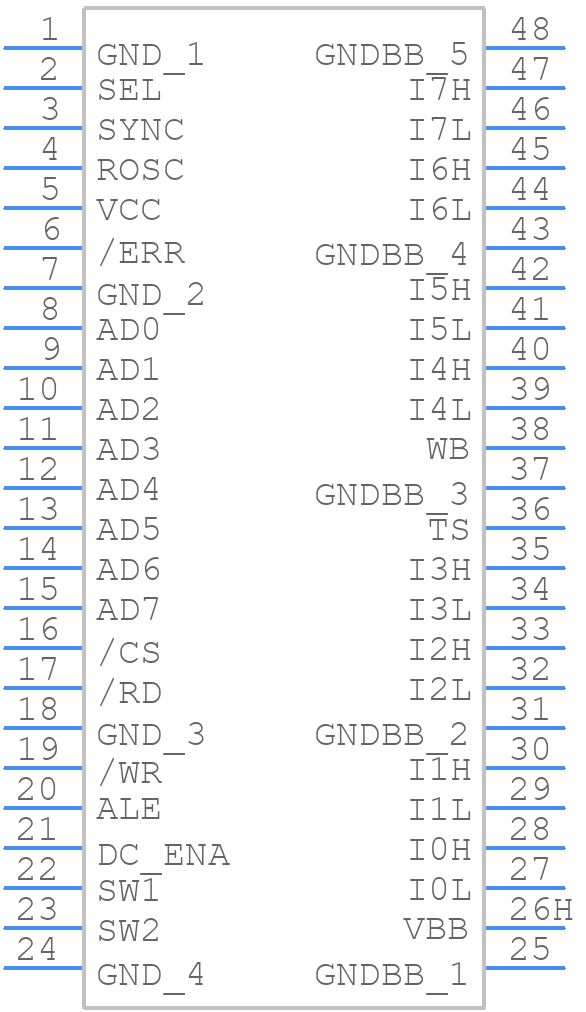

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISO1I813TXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-48
click to zoom
3D Models
ISO1I813TXUMA1 - Infineon  - 3D model - Small Outline Packages - TSSOP-48
click to zoom

ISO1I813TXUMA1 Details

  • Manufacturer Part Number:

    ISO1I813TXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-48

  • Pin Count:

    48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • Interface IC Type:

    DIGITAL I/P MODULE

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    35 V

  • Supply Voltage1-Min:

    9.6 V

  • Supply Voltage1-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

ISO1I813TXUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode filter and a shielded cable for the USB interface.
  • Use a metal shield around the device, ensure a good ground connection, and use a common mode filter on the USB interface. Also, follow the recommended PCB layout and keep the analog and digital circuits separate.
  • The maximum cable length supported is 3 meters, as per the USB specification. However, the actual cable length may vary depending on the specific application and the quality of the cable.
  • The device is rated for operation up to 85°C. However, the reliability and performance may degrade at higher temperatures. It is recommended to use a heat sink or a thermal pad to dissipate heat and ensure reliable operation.
  • Use a logic analyzer or an oscilloscope to debug the digital signals. Check the power supply voltage and ensure it is within the recommended range. Also, verify that the device is properly configured and the firmware is up-to-date.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO1I813TXUMA1 Overview

Use the download button to access the ISO1I813TXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO1I, or try a keyword search, such as Other Interface ICs
