ISO2H823V25XUMA1 - Infineon

ISO2H823V25XUMA1 Details

• Manufacturer Part Number:

  ISO2H823V25XUMA1

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

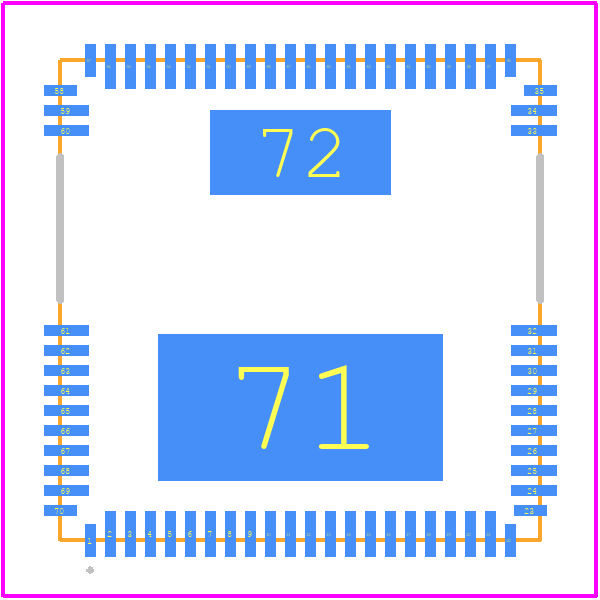

• Package Description:

  VQFN-70

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  5.5

• Additional Feature:

  INFN-O-A0004164449; PART PROCESSED WITH RESPECT TO BASE PART ISO2H823V2.5

• Built-in Protections:

  OVER CURRENT; OVER VOLTAGE

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  S-PQCC-N70

• JESD-609 Code:

  e3

• Length:

  12 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  70

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SOURCE

• Output Peak Current Limit-Nom:

  1 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG

• Seated Height-Max:

  0.9 mm

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  2.75 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Position:

  QUAD

• Turn-off Time:

  30 µs

• Turn-on Time:

  30 µs

• Width:

  12 mm
