The maximum capacitance load for the ISR2412A is 10uF. Exceeding this value may affect the stability of the output voltage.
The ISR2412A is rated for operation up to 80°C ambient temperature, but derating is required above 60°C. Consult the datasheet for derating curves.
The ISR2412A meets various safety certifications, including UL, EN, and IEC. However, specific certifications may require additional testing or documentation. Consult XP Power's certification documentation and/or contact their technical support for guidance.
XP Power provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, thermal management, and EMI reduction. Following this layout ensures optimal performance and reliability.
Yes, the ISR2412A can be used in redundant or parallel configurations, but specific design considerations and precautions are required to ensure reliable operation. Consult XP Power's application notes or contact their technical support for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISR2412A Overview

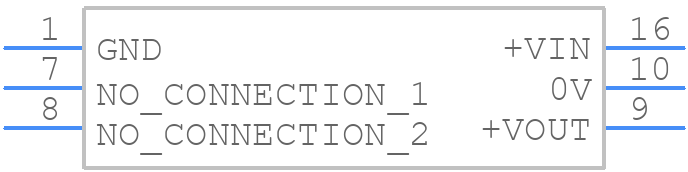

Use the download button to access the ISR2412A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISR24,
or try a keyword search, such as Power Supply Modules
