XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
To ensure reliable start-up, XP Power recommends applying a slow ramp-up of the input voltage (typically 10-20 ms) to prevent inrush currents. Additionally, the input voltage should be within the specified range, and the module should be operated within its recommended operating temperature range.
The maximum capacitance on the output of the ISX0624D15 is 47 μF. Exceeding this value may cause instability or oscillation in the module. It is recommended to use a capacitance value that is as close to the minimum required for the application as possible.
Yes, the ISX0624D15 is designed to withstand high-vibration environments. However, it is recommended to follow XP Power's guidelines for mounting and securing the module to ensure reliable operation. Additionally, the module's thermal performance may be affected by high-vibration environments, so it is essential to ensure proper heat dissipation.
The typical efficiency of the ISX0624D15 varies depending on the load. At 25% load, the efficiency is around 85%, at 50% load it is around 88%, and at 75% load it is around 90%. Please refer to the datasheet for more detailed efficiency curves.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISX0624D15 Overview

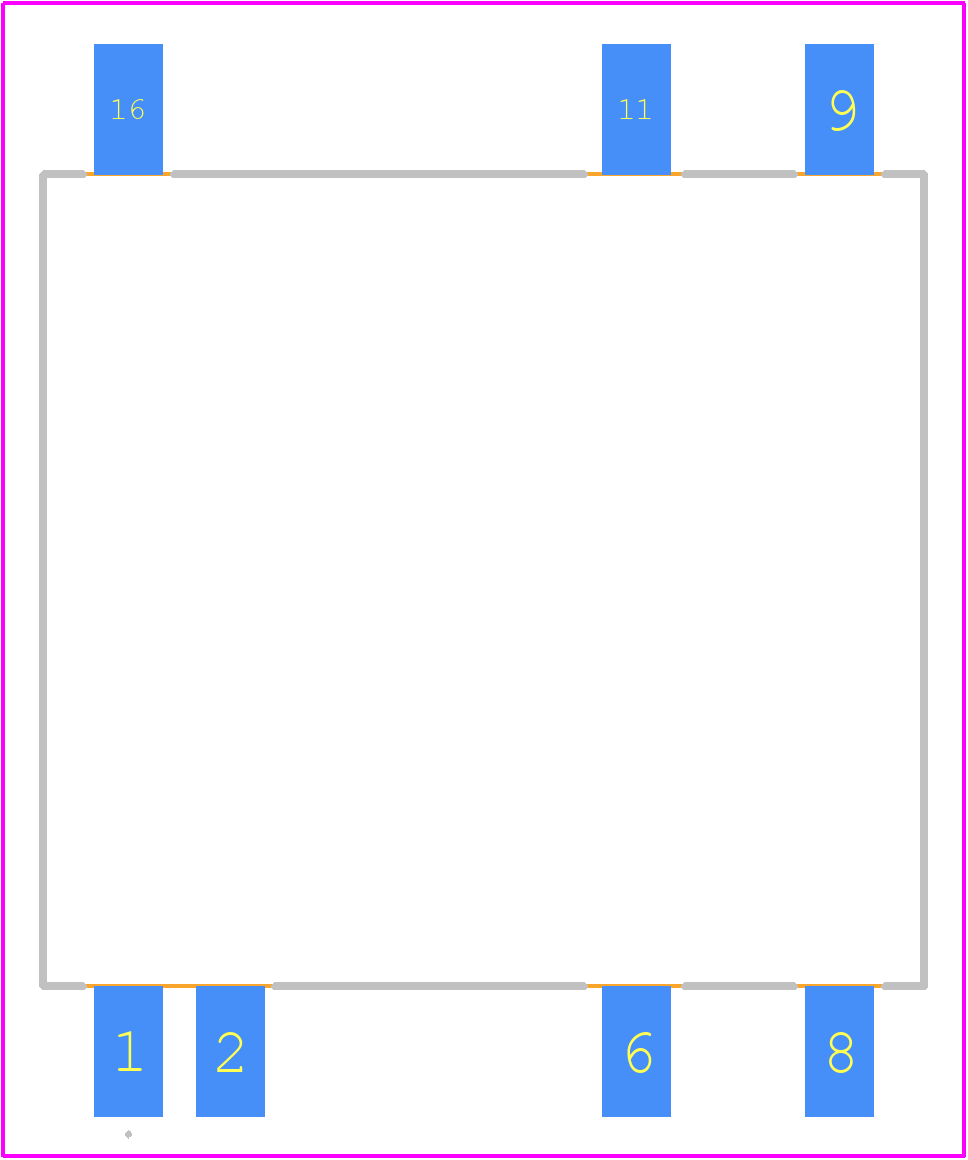

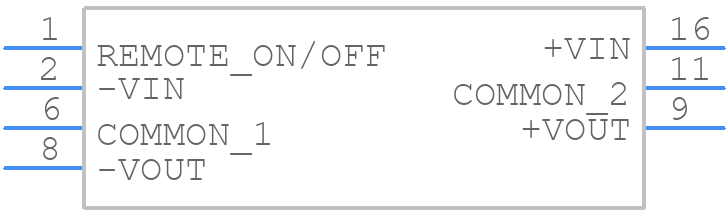

Use the download button to access the ISX0624D15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISX06,
or try a keyword search, such as Power Supply Modules
