ISX0624S24 - XP POWER

Description: XP Power Surface Mount 6W Isolated DC-DC Converter, Vin 9 → 36 V dc

Download ISX0624S24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

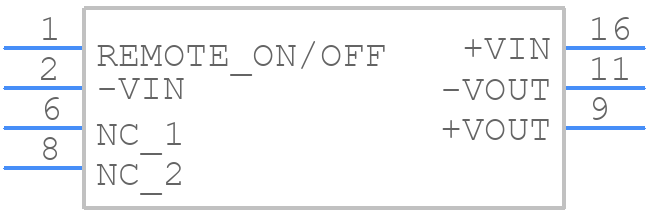

ISX0624S24 - XP POWER - PCB symbol
click to zoom
PCB Footprints

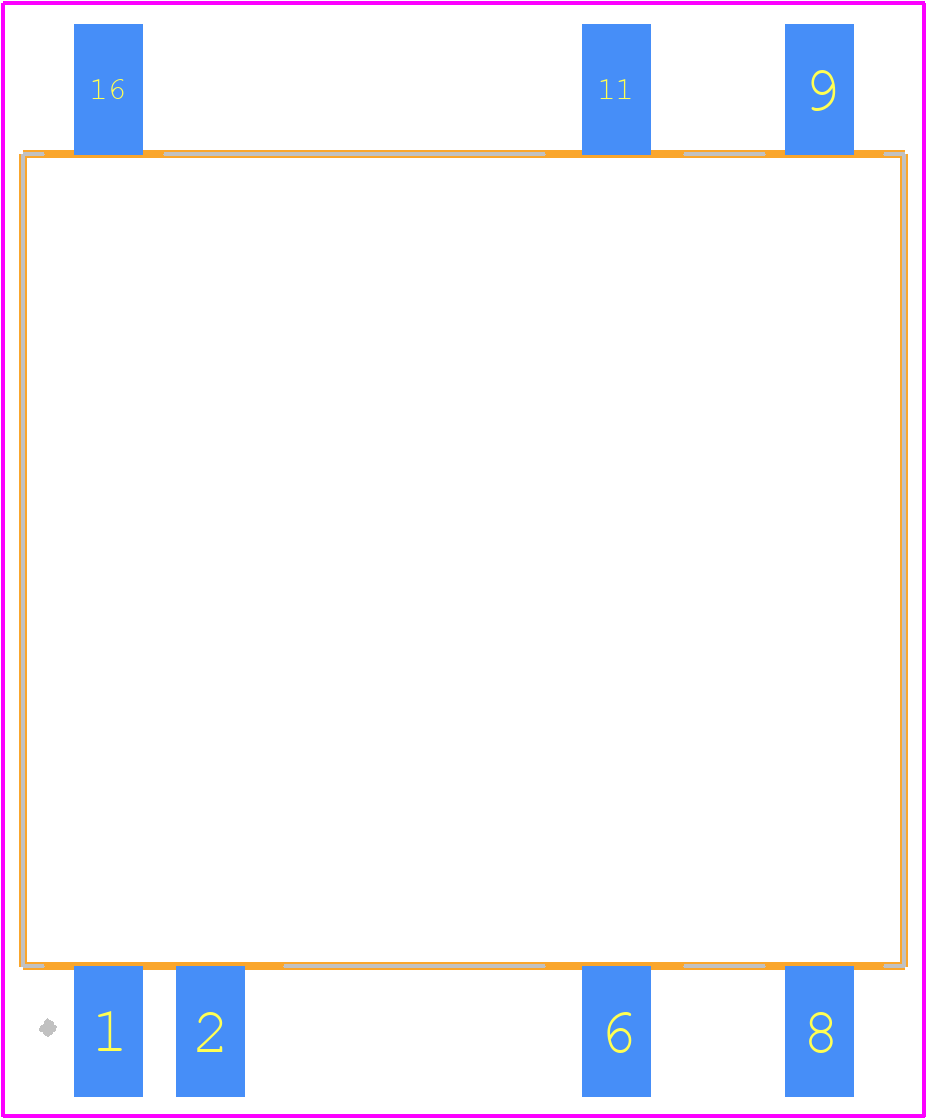

ISX0624S24 - XP POWER PCB footprint - Other - Other - ISX0624S24-2
click to zoom
3D Models
ISX0624S24 - XP POWER - 3D model - Other - ISX0624S24-2
click to zoom

ISX0624S24 Details

  • Manufacturer Part Number:

    ISX0624S24

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-7

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-05-30

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-G7

  • Length:

    22 mm

  • Load Regulation-Max:

    1.2%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24.48 V

  • Output Voltage-Min:

    23.52 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

ISX0624S24 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the ISX0624S24 is 0.1uF to 10uF, depending on the output voltage and frequency. It's recommended to consult with XP Power's application engineers for specific guidance.
  • The ISX0624S24 has a standard operating temperature range of -40°C to +85°C. However, it can be derated for high-temperature applications up to +100°C with reduced output power. Consult with XP Power's application engineers for specific guidance.
  • The recommended input fuse rating for the ISX0624S24 is 2A to 5A, depending on the input voltage and system requirements. It's recommended to consult with XP Power's application engineers for specific guidance.
  • Yes, the ISX0624S24 can be used in a redundant configuration to achieve high reliability and availability. However, it's recommended to consult with XP Power's application engineers to ensure proper implementation and to discuss specific requirements.
  • The MTBF rating for the ISX0624S24 is typically in the range of 1 million to 2 million hours, depending on the operating conditions and environment. Consult with XP Power's application engineers for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISX0624S24 Overview

Use the download button to access the ISX0624S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISX06, or try a keyword search, such as Power Supply Modules
