ISX0648S05 - XP POWER

Description: XP Power Surface Mount 6W Isolated DC-DC Converter, Vin 18 → 75 V dc

Download ISX0648S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

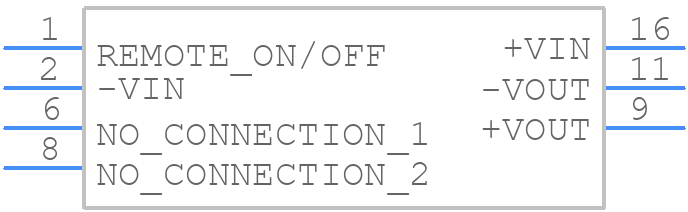

ISX0648S05 - XP POWER - PCB symbol
click to zoom
PCB Footprints

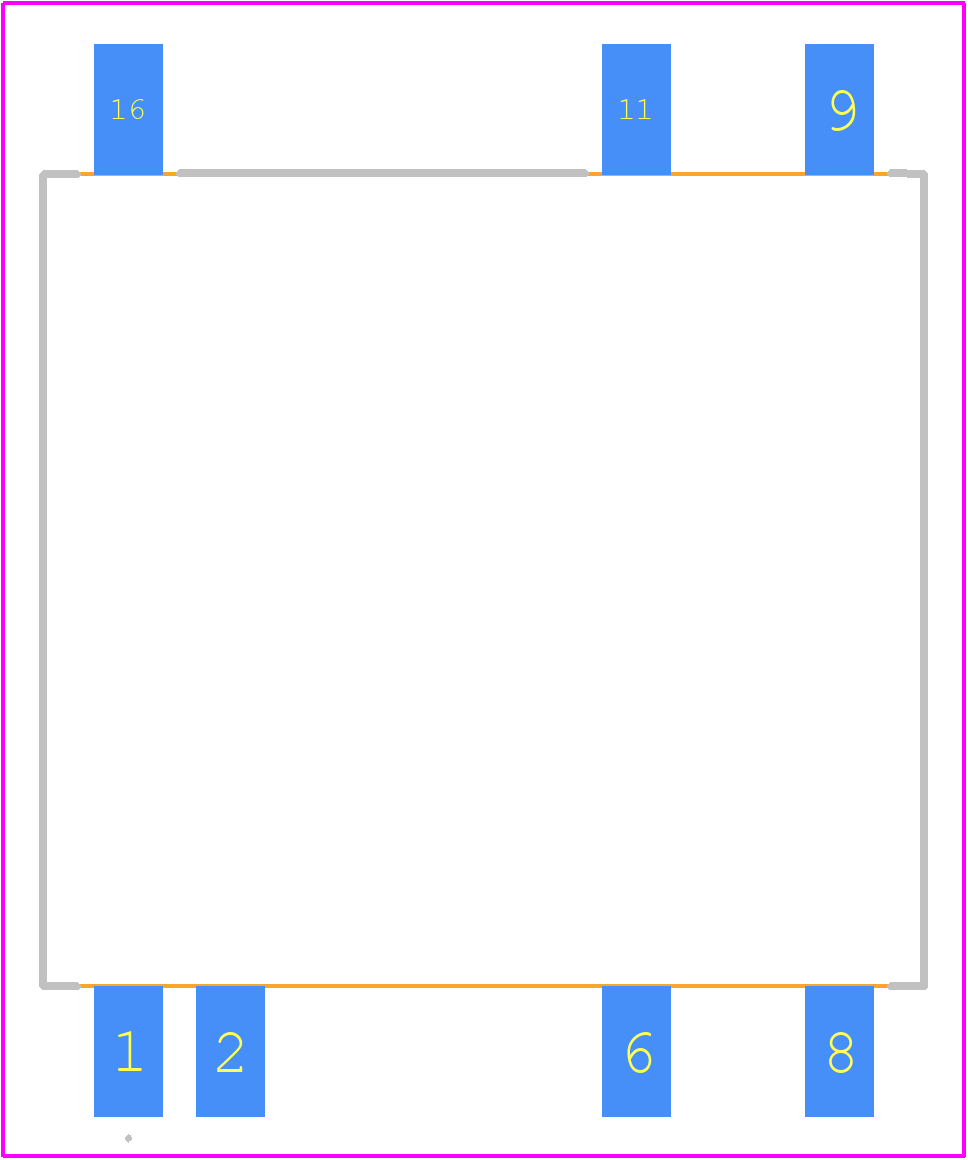

ISX0648S05 - XP POWER PCB footprint - Other - Other - ISX0648S05-1
click to zoom
3D Models
ISX0648S05 - XP POWER - 3D model - Other - ISX0648S05-1
click to zoom

ISX0648S05 Details

  • Manufacturer Part Number:

    ISX0648S05

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-7

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-05-30

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-PDMA-G7

  • Length:

    22 mm

  • Load Regulation-Max:

    1.2%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

ISX0648S05 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the ISX0648S05 is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The ISX0648S05 is rated for operation up to 85°C ambient temperature. However, derating may be necessary for high-temperature applications. Consult the manufacturer's application notes for guidance.
  • The ISX0648S05 meets various safety certifications, including UL, CE, and IEC. However, specific certifications may require additional testing or documentation. Consult the manufacturer's certification documents and application notes for guidance.
  • The recommended PCB layout for the ISX0648S05 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths. Consult the manufacturer's application notes for a detailed layout guide.
  • Yes, the ISX0648S05 can be used in a parallel configuration to increase the output current. However, it is essential to ensure that the devices are properly synchronized and that the output currents are balanced to prevent oscillations.
