ITA18B1 - STMicroelectronics

Description: Bidirectional Transil™ array for data line protection

Download ITA18B1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

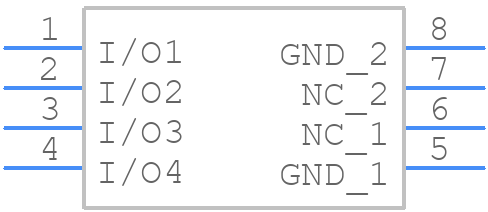

Symbol
ITA18B1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ITA18B1 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
ITA18B1 - STMicroelectronics - 3D model - Small Outline Packages - SO-8
click to zoom

ITA18B1 Details

  • Manufacturer Part Number:

    ITA18B1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOD

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Breakdown Voltage-Min:

    18 V

  • Clamping Voltage-Max:

    28 V

  • Configuration:

    COMMON CATHODE, 6 ELEMENTS, 6 CHANNEL

  • Diode Capacitance-Min:

    350 pF

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    300 W

  • Number of Elements:

    6

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2; MIL-STD-883G

  • Rep Pk Reverse Voltage-Max:

    15 V

  • Reverse Current-Max:

    4 µA

  • Reverse Test Voltage:

    15 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

ITA18B1 Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design and layout guidelines. Additionally, consider using a heat sink or thermal interface material to reduce the junction-to-case thermal resistance.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • The ITA18B1 is not designed for high-humidity environments. If you need to operate the device in a humid environment, consider using a conformal coating or potting the device to protect it from moisture.
  • Start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals for any anomalies. Use an oscilloscope to monitor the signals and identify any issues. If the problem persists, consult the STMicroelectronics support resources or contact their technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ITA18B1 Overview

Use the download button to access the ITA18B1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ITA18, or try a keyword search, such as Transient Suppressors
