ITS4040DEPDXUMA1 - Infineon

Description: Power Switch ICs - Power Distribution INDUSTRY PROFETS

Download ITS4040DEPDXUMA1 Model

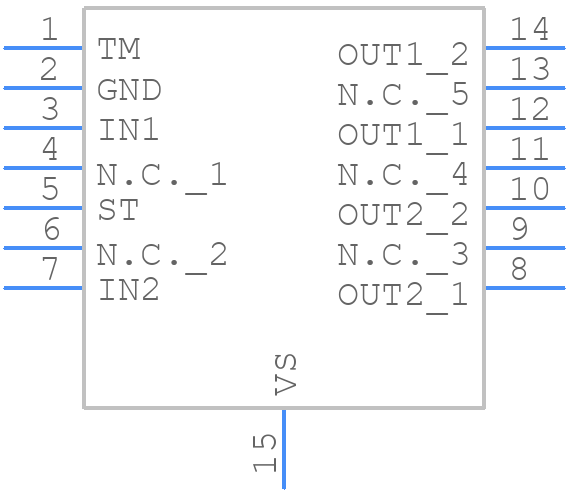

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ITS4040DEPDXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSDSO-14
click to zoom
3D Models
ITS4040DEPDXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-TSDSO-14
click to zoom

ITS4040DEPDXUMA1 Details

  • Manufacturer Part Number:

    ITS4040DEPDXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2A

  • Terminal Finish:

    Tin (Sn)
