ITS4060SSJNXUMA1 - Infineon

Description: Power Switch ICs - Power Distribution MINI-PROFET

Download ITS4060SSJNXUMA1 Model

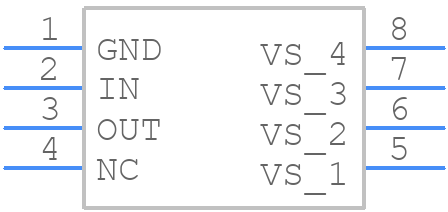

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ITS4060SSJNXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8_2022-1
click to zoom
3D Models
ITS4060SSJNXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-8_2022-1
click to zoom

ITS4060SSJNXUMA1 Details

  • Manufacturer Part Number:

    ITS4060SSJNXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.05

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Peak Current Limit-Nom:

    3.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    34 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    230 µs

  • Turn-on Time:

    180 µs

  • Width:

    4 mm

ITS4060SSJNXUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
  • To ensure EMC, follow the recommended PCB layout, use a shielded enclosure, and ensure proper grounding and decoupling. Additionally, perform EMC testing to ensure compliance with relevant standards.
  • The maximum allowed voltage transient on the input pins is 10% above the recommended operating voltage. However, it's essential to consult the datasheet and application notes for specific guidance on voltage transients and surge protection.
  • The ITS4060SSJNXUMA1 is rated for operation up to 150°C. However, it's essential to consider the device's power dissipation, thermal resistance, and cooling mechanisms to ensure reliable operation in high-temperature environments.
  • Consult the datasheet and application notes for troubleshooting guidelines. Perform a thorough analysis of the system design, PCB layout, and component selection to identify potential issues. Use debugging tools, such as oscilloscopes and logic analyzers, to diagnose problems.
