ITS4300SSJDXUMA1 - Infineon

Description: Infineon ITS4300SSJDXUMA1 Intelligent Power Switch, High Side Power Switch, 0.4 (Minimum)A, 40V 8-Pin, DSO

Download ITS4300SSJDXUMA1 Model
Schematic

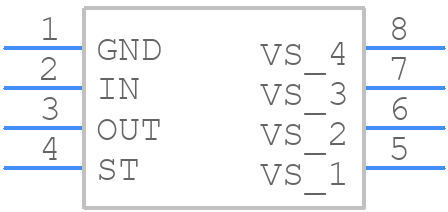

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ITS4300SSJDXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - ITS4300SSJDXUMA1
click to zoom
3D Models
ITS4300SSJDXUMA1 - Infineon  - 3D model - Small Outline Packages - ITS4300SSJDXUMA1
click to zoom

ITS4300SSJDXUMA1 Details

  • Manufacturer Part Number:

    ITS4300SSJDXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DSO-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    34 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    170 µs

  • Turn-on Time:

    140 µs

  • Width:

    4 mm

ITS4300SSJDXUMA1 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central pad for the sensor and a ground plane on the bottom layer is recommended. Keep the sensor away from high-current paths and decoupling capacitors.
  • Calibration involves adjusting the sensitivity and offset of the sensor. Use the provided API or a calibration tool to adjust the sensor's internal registers. Consult the application note or contact Infineon support for guidance.
  • The ITS4300SSJDXUMA1 operates from -40°C to 125°C. However, the accuracy and sensitivity may degrade at extreme temperatures. Consult the datasheet for temperature-dependent characteristics.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI and RFI. Ensure a stable power supply and decouple the sensor from noisy signals. Consult the application note for EMI and RFI mitigation strategies.
  • Power on the sensor after the power supply has stabilized. Ensure a clean power-up sequence to prevent damage or incorrect operation. Consult the datasheet for specific power-on requirements.
