ITS4880R - Infineon

Description: Infineon ITS4880R, Octal Intelligent Power Switch, High Side, 0.625A, -1 → 45V 36-Pin, SOIC

Download ITS4880R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

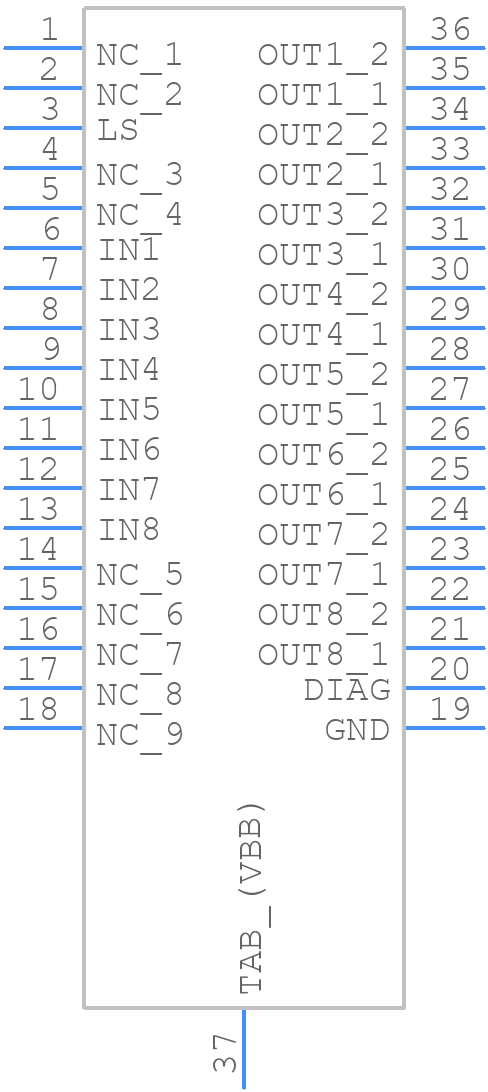

ITS4880R - Infineon - PCB symbol
click to zoom
PCB Footprints

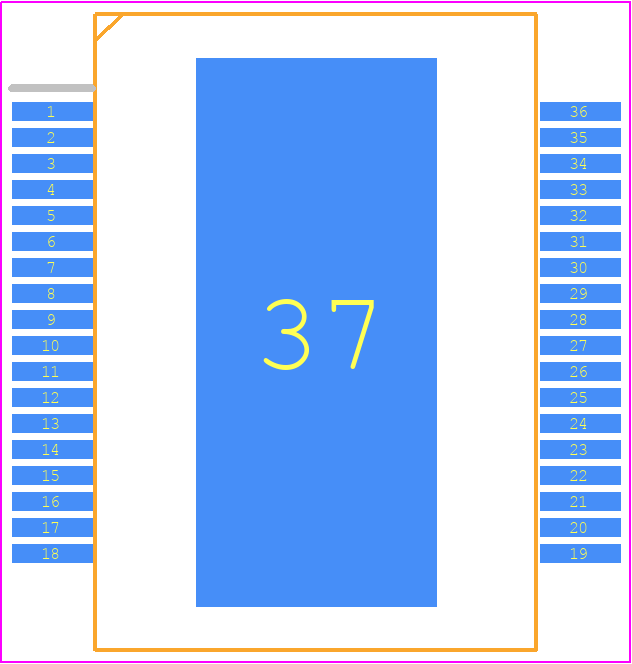

ITS4880R - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-36-26
click to zoom
3D Models
ITS4880R - Infineon - 3D model - Small Outline Packages - PG-DSO-36-26
click to zoom

ITS4880R Details

  • Manufacturer Part Number:

    ITS4880R

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    8

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max:

    45 V

  • Supply Voltage-Min:

    11 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    150 µs

  • Turn-on Time:

    100 µs

  • Width:

    11 mm

ITS4880R Frequently Asked Questions (FAQs)

  • Infineon recommends a PCB layout with a large copper area connected to the thermal pad of the ITS4880R to ensure good heat dissipation. A minimum of 2oz copper thickness and a thermal via array under the device are also recommended.
  • To ensure reliability, it is essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
  • To minimize EMI, use a common-mode choke and a differential-mode filter in the input lines. Ensure the filter components are placed close to the ITS4880R and use a ground plane to reduce radiation. Follow Infineon's application notes for specific guidance.
  • Use a systematic approach to troubleshoot issues. Check the input voltage, current, and temperature. Verify the PCB layout and thermal design. Use Infineon's application notes and technical support resources to help identify and resolve the issue.
  • The OCP feature of the ITS4880R is designed to protect the device from excessive current. Ensure that the system design takes into account the OCP threshold and response time to prevent false triggers or system malfunction.
