TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
4
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
12.8 mm
Moisture Sensitivity Level:
3
Number of Functions:
4
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
8.5 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
245
Qualification Status:
Not Qualified
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
40 V
Supply Voltage-Min:
5.5 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL EXTENDED
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Turn-off Time:
270 µs
Turn-on Time:
250 µs
Width:
7.6 mm
ITS724G Frequently Asked Questions (FAQs)
Infineon recommends a PCB layout with a large copper area connected to the thermal pad of the ITS724G to ensure good heat dissipation. A minimum of 2oz copper thickness and a thermal via array under the device are also recommended.
To ensure reliability, it is essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, a thorough thermal design and validation should be performed to ensure the device operates within the specified temperature range.
When using the ITS724G, it is essential to consider EMI filtering to ensure electromagnetic compatibility. A pi-filter or a common-mode choke can be used to filter out high-frequency noise. Additionally, a good PCB layout with short traces and a solid ground plane can help reduce EMI emissions.
To troubleshoot issues with the ITS724G, start by checking the power supply voltage, input voltage, and output voltage. Verify that the device is operating within the recommended operating conditions. Use an oscilloscope to check for voltage spikes, noise, or oscillations. If the issue persists, consult the datasheet and application notes or contact Infineon's technical support.
The ITS724G's OCP feature is designed to protect the device from excessive current. However, it may also affect system design. Ensure that the system can handle the OCP threshold and that the device is properly sized for the application. Additionally, consider the impact of OCP on system startup and shutdown sequences.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ITS724G Overview

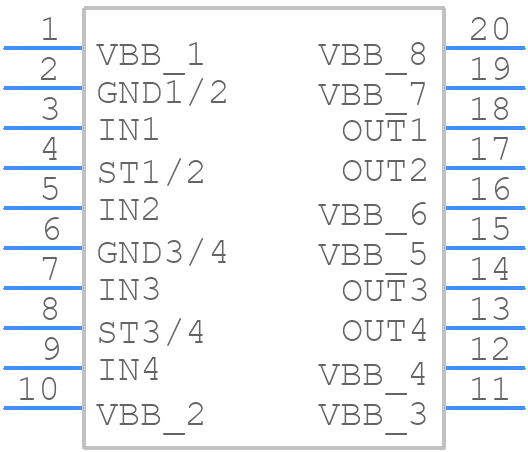

Use the download button to access the ITS724G schematic symbol, PCB footprint, and 3D model.
