TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
12.8 mm
Moisture Sensitivity Level:
3
Number of Functions:
4
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
8.5 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Qualification Status:
Not Qualified
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
40 V
Supply Voltage-Min:
5.5 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL EXTENDED
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Turn-off Time:
270 µs
Turn-on Time:
250 µs
Width:
7.6 mm
ITS724GFUMA1 Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
To prevent ESD damage, handle the device in an ESD-protected environment, wear an ESD strap or wrist strap, and use ESD-safe packaging materials. Avoid touching the device's pins or leads, and use an ESD-safe workstation or mat.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Verify that the device is properly configured and that the output capacitors are of sufficient value and type. Also, check for any signs of overheating or thermal shutdown.
When using the device in a high-reliability or safety-critical application, consider implementing redundant systems, using error detection and correction mechanisms, and following relevant industry standards and guidelines. Additionally, ensure that the device is properly derated and that the system is designed to tolerate single-point failures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ITS724GFUMA1 Overview

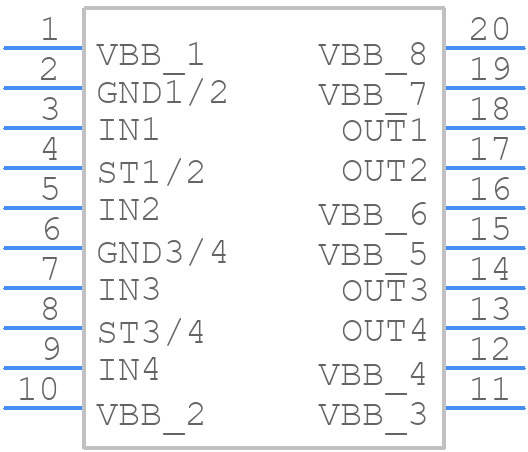

Use the download button to access the ITS724GFUMA1 schematic symbol, PCB footprint, and 3D model.
