ITX2424SA - XP POWER

Description: Isolated DC/DC Converters DC-DC, 6W, 2:1 INPUT , SIP

Download ITX2424SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

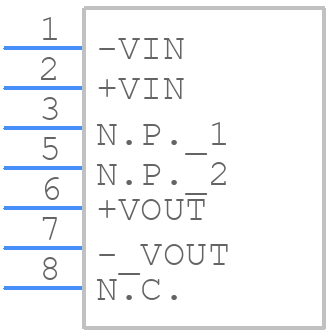

Symbol
ITX2424SA - XP POWER - PCB symbol
click to zoom
PCB Footprints
ITX2424SA - XP POWER PCB footprint - Other - Other - ITX2424SA-1
click to zoom
3D Models
ITX2424SA - XP POWER - 3D model - Other - ITX2424SA-1
click to zoom

ITX2424SA Details

  • Manufacturer Part Number:

    ITX2424SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-5

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PSMA-P5

  • Length:

    21.85 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24.24 V

  • Output Voltage-Min:

    23.76 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

ITX2424SA Frequently Asked Questions (FAQs)

  • The ITX2424SA is rated for operation from -40°C to +85°C, but for reliable operation, it's recommended to operate within -20°C to +70°C to ensure optimal performance and longevity.
  • To ensure EMC, follow the layout and grounding guidelines provided in the datasheet, and consider using additional filtering or shielding if necessary. Also, ensure that the power supply is installed in a metal enclosure to reduce electromagnetic radiation.
  • The ITX2424SA has a maximum output power derating of 2.5% per °C above 40°C. This means that for every 1°C increase in ambient temperature above 40°C, the maximum output power is reduced by 2.5%.
  • The ITX2424SA is designed to operate in a relative humidity range of 20% to 80%. However, if you need to operate in a high-humidity environment, consider using conformal coating or other environmental protection measures to ensure reliability.
  • The recommended input fuse rating for the ITX2424SA is 2A slow-blow. This ensures that the power supply is protected from input overcurrent conditions.
