IV2415SA - XP POWER

Description: XP Power Through Hole 1W Isolated DC-DC Converter, Vin 21.6 → 26.4 V dc, I/O isolation 3kV dc, Vout 15V dc

Download IV2415SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

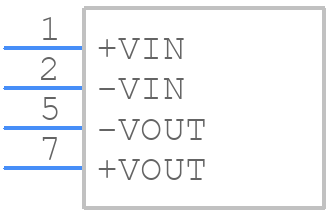

IV2415SA - XP POWER - PCB symbol
click to zoom
PCB Footprints

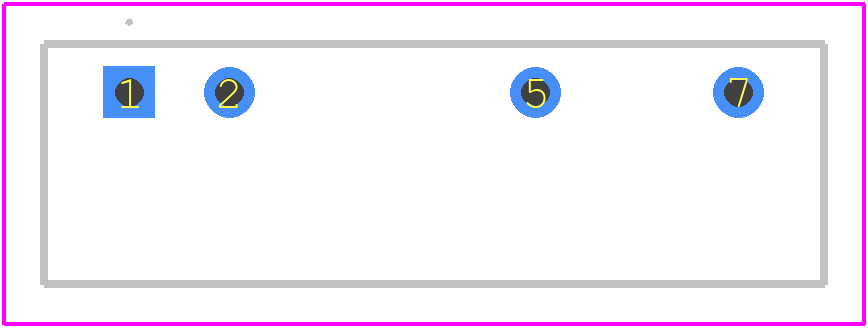

IV2415SA - XP POWER PCB footprint - Other - Other - IV2415SA-3
click to zoom
3D Models
IV2415SA - XP POWER - 3D model - Other - IV2415SA-3
click to zoom

IV2415SA Details

  • Manufacturer Part Number:

    IV2415SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    Module-4

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6.4

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    26.4 V

  • Input Voltage-Min:

    21.6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XSMA-T4

  • Length:

    19.5 mm

  • Load Regulation-Max:

    10%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    15.45 V

  • Output Voltage-Min:

    14.55 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    6 mm

IV2415SA Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the IV2415SA is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The IV2415SA is rated for operation up to 80°C, but derating is required above 60°C. Consult the datasheet for derating curves and ensure proper thermal management.
  • The IV2415SA meets various safety certifications, including UL, EN, and IEC. However, specific certifications may require additional testing or documentation. Consult XP Power's certification documentation and ensure compliance with your specific requirements.
  • A good PCB layout for the IV2415SA should prioritize thermal management, minimize noise, and ensure proper decoupling. Consult XP Power's application notes and PCB layout guidelines for specific recommendations.
  • Yes, the IV2415SA can be used in redundant or parallel configurations, but specific design considerations and synchronization techniques may be required. Consult XP Power's application notes and technical support for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IV2415SA Overview

Use the download button to access the IV2415SA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IV241, or try a keyword search, such as Power Supply Modules
