IW1224SA - XP POWER

Description: Isolated Module DC DC Converter 1 Output 24V - - 42mA 9V - 18V Input

Download IW1224SA Model

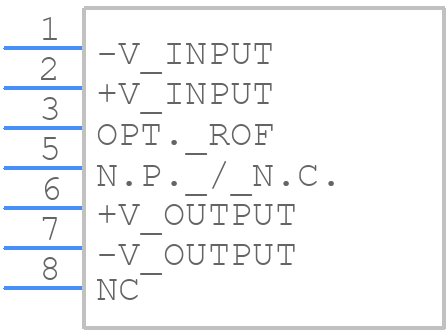

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IW1224SA - XP POWER PCB footprint - Other - Other - 8-SIP Module, 4 Leads
click to zoom
3D Models
IW1224SA - XP POWER  - 3D model - Other - 8-SIP Module, 4 Leads
click to zoom

IW1224SA Details

  • Manufacturer Part Number:

    IW1224SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-5

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XSMA-T5

  • Length:

    21.85 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24.48 V

  • Output Voltage-Min:

    23.52 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

IW1224SA Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the IW1224SA is 10uF. Exceeding this value may cause instability or oscillation.
  • While the IW1224SA has a high operating temperature range of -40°C to 85°C, it's recommended to derate the output power by 2.5% per degree above 60°C to prevent overheating.
  • To ensure EMCC, follow the recommended PCB layout, use a metal shield around the DC-DC converter, and add external filtering components as specified in the datasheet.
  • The minimum input voltage required for the IW1224SA to operate is 9V. Operating the converter below this voltage may cause instability or failure.
  • Yes, you can parallel multiple IW1224SA to increase the output power. However, ensure that the output voltage and current are matched, and the total output capacitance does not exceed the recommended value.
