IW2412SA - XP POWER

Description: Isolated Module DC DC Converter 1 Output 12V 83mA 18V - 36V Input

Download IW2412SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

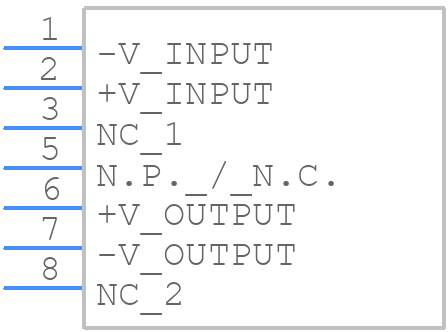

Symbol
IW2412SA - XP POWER - PCB symbol
click to zoom
PCB Footprints
IW2412SA - XP POWER PCB footprint - Other - Other - IW2412SA-4
click to zoom
3D Models
IW2412SA - XP POWER - 3D model - Other - IW2412SA-4
click to zoom

IW2412SA Details

  • Manufacturer Part Number:

    IW2412SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-5

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XSMA-T5

  • Length:

    21.85 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.24 V

  • Output Voltage-Min:

    11.76 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    0.996 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

IW2412SA Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the IW2412SA is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The IW2412SA is rated for operation up to 85°C ambient temperature. However, derating may be necessary for temperatures above 70°C. Consult the manufacturer's application notes for guidance.
  • The IW2412SA meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the specific certification requirements for your application and ensure the module meets those standards.
  • The recommended input fuse value for the IW2412SA is 2A slow-blow. However, the actual fuse value may vary depending on the specific application and input voltage.
  • Yes, you can parallel multiple IW2412SA modules to increase the output power. However, it's crucial to ensure proper synchronization and current sharing between the modules to avoid instability and overheating.
