IW3689-01 - Renesas Electronics

Description: The iW3689 is a single-stage, high-performance SSL LED driver offering smooth, flicker- and shimmer-free dimming performance and exceptional compatibility with an ultra-wide range of phase-cut dimmers, including the most challenging TRIAC and digital dimmers.Renesas' patented digital algorithms eliminate more than 20 components, including the external bleeder circuit, enabling integrated active biasing for high-performance dimming at a lower BOM cost compared to conventional bleeder circuits. The iW3689 als

Download IW3689-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

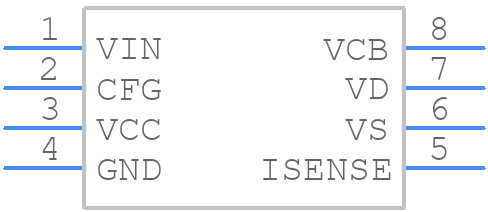

IW3689-01 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
IW3689-01 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (8 LD SOIC)-000
click to zoom
3D Models
IW3689-01 - Renesas Electronics - 3D model - Small Outline Packages - (8 LD SOIC)-000
click to zoom

IW3689-01 Details

  • Manufacturer Part Number:

    IW3689-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

IW3689-01 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1844) for the IW3689-01, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The IW3689-01 has a built-in overcurrent protection feature, but it's recommended to add an external overcurrent protection circuit to ensure reliable operation. Renesas provides a reference design in their application note (AN1845) that includes a circuit diagram and component values for overcurrent protection.
  • Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The capacitor should be placed as close as possible to the VIN pin of the IW3689-01 to minimize noise and ensure stable operation.
  • The output voltage of the IW3689-01 can be adjusted by using a resistive divider network between the VOUT pin and the GND pin. Renesas provides a formula in their datasheet to calculate the required resistor values for a specific output voltage.
  • The maximum ambient temperature for the IW3689-01 is 85°C, but it's recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IW3689-01 Overview

Use the download button to access the IW3689-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IW368, or try a keyword search, such as Display Drivers
