IX4341N - LITTELFUSE

Description: 5A Dual Inverting Low-Side MOSFET Driver, 8-pin Narrow SOIC (100/tube)

Download IX4341N Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IX4341N model

Email notifications will be applied after download.

Send part feedback

Symbol

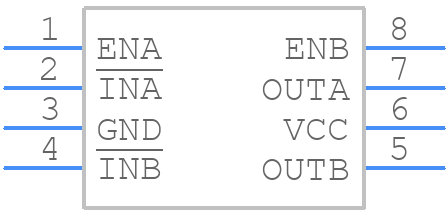

IX4341N - LITTELFUSE - PCB symbol

PCB Footprints

IX4341N - LITTELFUSE PCB footprint - Other - Other - 8-Pin SOIC (N-PACKAGE)

3D Models

IX4341N - LITTELFUSE - 3D model - Other - 8-Pin SOIC (N-PACKAGE)

Datasheet Download Datasheet
Stock & Prices Price & Stock for IX4341N
Part Number IX4341N
Manufacturer LITTELFUSE
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 8-Pin SOIC (N-PACKAGE)
Released Date Aug 13, 2024
Last Modified Date Oct 6, 2025 1:29 PM UTC
Pinout / Pin List Click Here (Member Only)

IX4341N Details

Manufacturer Part Number:
IX4341N
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Littelfuse Inc
YTEOL:
6
Interface IC Type:
BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Terminal Finish:
Tin (Sn)
Time@Peak Reflow Temperature-Max (s):
30

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IX4341N Overview

Use the download button to access the IX4341N schematic symbol, PCB footprint, and 3D model.
