IX4341NE - LITTELFUSE

Description: 5A Dual Inverting Low-Side MOSFET Driver, 8-pin Narrow SOIC, exposed thermal pad(100/tube)

Download IX4341NE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IX4341NE model

Email notifications will be applied after download.

Send part feedback

Symbol

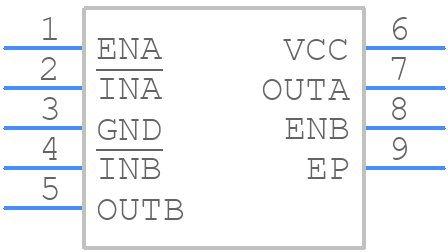

IX4341NE - LITTELFUSE - PCB symbol

PCB Footprints

IX4341NE - LITTELFUSE PCB footprint - Other - Other - 8-Pin SOIC w/ Exposed Thermal Pad

3D Models

IX4341NE - LITTELFUSE - 3D model - Other - 8-Pin SOIC w/ Exposed Thermal Pad

Datasheet Download Datasheet
Stock & Prices Price & Stock for IX4341NE
Part Number IX4341NE
Manufacturer LITTELFUSE
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 8-Pin SOIC w/ Exposed Thermal Pad
Released Date Aug 13, 2024
Last Modified Date Aug 13, 2024 3:16 AM UTC
Pinout / Pin List Click Here (Member Only)

IX4341NE Details

Manufacturer Part Number:
IX4341NE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Littelfuse Inc
YTEOL:
6
Interface IC Type:
BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Terminal Finish:
Tin (Sn)
Time@Peak Reflow Temperature-Max (s):
30

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IX4341NE Overview

Use the download button to access the IX4341NE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IX434, or try a keyword search, such as MOSFET Drivers
