IX4341UE - LITTELFUSE

Description: 5A Dual Inverting Low-Side MOSFET Driver, 8-pin MSOP, exposed thermal pad(80/tube)

Download IX4341UE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IX4341UE model

Email notifications will be applied after download.

Send part feedback

Symbol

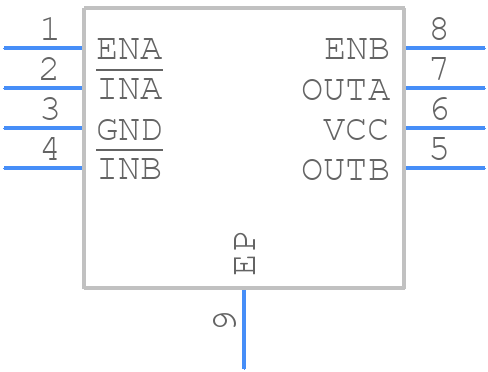

IX4341UE - LITTELFUSE - PCB symbol

PCB Footprints

IX4341UE - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin MSOP w/ Exposed

3D Models

IX4341UE - LITTELFUSE - 3D model - Small Outline Packages - 8-Pin MSOP w/ Exposed

Datasheet Download Datasheet
Stock & Prices Price & Stock for IX4341UE
Part Number IX4341UE
Manufacturer LITTELFUSE
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8-Pin MSOP w/ Exposed
Released Date Aug 13, 2024
Last Modified Date Aug 13, 2024 3:10 AM UTC
Pinout / Pin List Click Here (Member Only)

IX4341UE Details

Manufacturer Part Number:
IX4341UE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Littelfuse Inc
YTEOL:
6
Interface IC Type:
BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Terminal Finish:
Tin (Sn)
Time@Peak Reflow Temperature-Max (s):
30

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IX4341UE Overview

Use the download button to access the IX4341UE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IX434, or try a keyword search, such as MOSFET Drivers
