IX4342NE - LITTELFUSE

Description: 5A Dual, One Inverting & One Non-Inverting, Low-Side MOSFET Driver

Download IX4342NE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IX4342NE model

Email notifications will be applied after download.

Send part feedback

Symbol

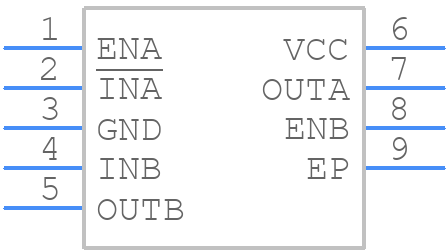

IX4342NE - LITTELFUSE - PCB symbol

PCB Footprints

IX4342NE - LITTELFUSE PCB footprint - Other - Other - 8-Pin SOIC w/ Exposed Thermal Pad

3D Models

IX4342NE - LITTELFUSE - 3D model - Other - 8-Pin SOIC w/ Exposed Thermal Pad

Datasheet Download Datasheet
Stock & Prices Price & Stock for IX4342NE
Part Number IX4342NE
Manufacturer LITTELFUSE
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 8-Pin SOIC w/ Exposed Thermal Pad
Released Date Aug 13, 2024
Last Modified Date Oct 6, 2025 1:29 PM UTC
Pinout / Pin List Click Here (Member Only)

IX4342NE Details

Manufacturer Part Number:
IX4342NE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Littelfuse Inc
YTEOL:
6
Interface IC Type:
BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Terminal Finish:
Tin (Sn)
Time@Peak Reflow Temperature-Max (s):
30
