IX4342UETR - LITTELFUSE

Description: 5A Dual, One Inverting & One Non-Inverting, Low-Side MOSFET Driver

Download IX4342UETR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IX4342UETR model

Email notifications will be applied after download.

Send part feedback

Symbol

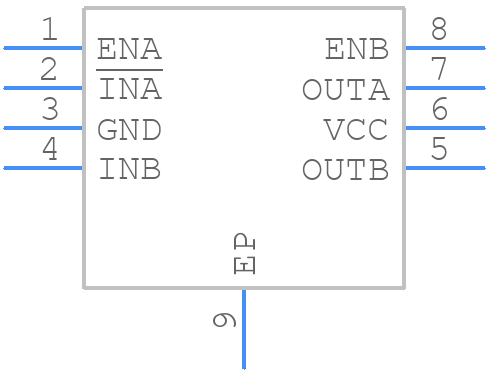

IX4342UETR - LITTELFUSE - PCB symbol

PCB Footprints

IX4342UETR - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin MSOP w/ Exposed

3D Models

IX4342UETR - LITTELFUSE - 3D model - Small Outline Packages - 8-Pin MSOP w/ Exposed

Datasheet Download Datasheet
Stock & Prices Price & Stock for IX4342UETR
Part Number IX4342UETR
Manufacturer LITTELFUSE
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8-Pin MSOP w/ Exposed
Released Date Aug 13, 2024
Last Modified Date Oct 6, 2025 1:29 PM UTC
Pinout / Pin List Click Here (Member Only)

IX4342UETR Details

Manufacturer Part Number:
IX4342UETR
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Littelfuse Inc
YTEOL:
6
Interface IC Type:
BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Terminal Finish:
Tin (Sn)
Time@Peak Reflow Temperature-Max (s):
30
