A good PCB layout for the IX4427MTR should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device to facilitate heat dissipation.
To ensure reliable operation in high-temperature environments, ensure that the device is properly heatsinked, and the ambient temperature is within the recommended operating range. Also, consider derating the device's current handling capability at higher temperatures.
The IX4427MTR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, ensure that the device is powered up and down slowly, and avoid voltage spikes or transients on the power lines.
While the IX4427MTR is a high-quality device, it's essential to evaluate its suitability for high-reliability or safety-critical applications. Consult with Littelfuse Inc or a qualified reliability engineer to determine if the device meets the specific requirements of your application.
Store the IX4427MTR in a cool, dry place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the leads or electrical contacts. Use anti-static packaging and follow proper ESD handling procedures during assembly and testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IX4427MTR Overview

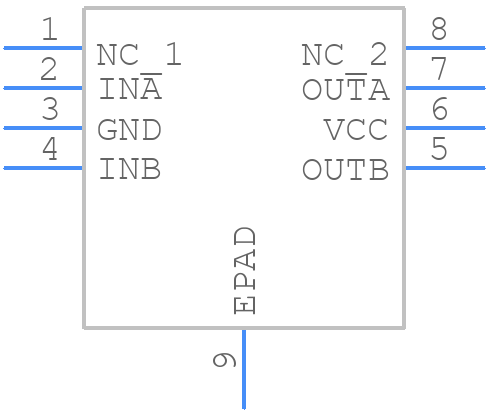

Use the download button to access the IX4427MTR schematic symbol, PCB footprint, and 3D model.
